Choose your fulfillment option when ordering: Local Pickup or Scheduled Installation. Installation appointments are scheduled after your purchase is completed.
The Miele WXF 980 WCS Washer and TXF 360 WP T1 Dryer Laundry Pair brings Platinum Class fabric care, automatic detergent dispensing, and smart laundry technology to a compact 24-inch footprint. This matched washer and heat-pump dryer set is ideal for apartments, condos, and homes requiring premium performance in a space-saving design.
The WXF 980 WCS front-load washer combines TwinDos automatic detergent dispensing with IntenseWash, QuickIntenseWash, SingleWash, and SoftSteam. Its 18 lb capacity, 1,600 rpm maximum spin speed, and Honeycomb Drum provide powerful cleaning with gentle care for your clothing.
Paired with the TXF 360 WP T1 heat-pump dryer, this ventless drying system provides gentle, energy-efficient drying without requiring an external vent. PerfectDry helps prevent over- or under-drying, while FragranceDos2 supports two optional Miele fragrance flacons for personalized laundry freshness.
Both appliances connect through Miele@home. Wash2Dry allows the washer to share cycle information with the dryer, helping it select the appropriate drying program for your freshly washed load.
Washer Highlights – Miele WXF 980 WCS
- Compact 24" Platinum Class W1 washer
- 18 lb capacity and 1,600 rpm maximum spin speed
- TwinDos automatic detergent dispensing
- IntenseWash and QuickIntenseWash cleaning technology
- SingleWash option for smaller loads
- SoftSteam helps reduce creasing
- 11 wash programs plus MobileStart
- Miele@home and Wash2Dry connectivity
Dryer Highlights – Miele TXF 360 WP T1
- Compact 24" Platinum Class heat-pump dryer
- 18 lb capacity matched to the washer
- Ventless heat-pump drying technology
- PerfectDry precision drying system
- FragranceDos2 dual fragrance system
- 10 drying programs plus MobileStart
- Miele@home and Wash2Dry connectivity
- No external dryer vent required
Included Appliances and Selected Accessories
- Miele WXF 980 WCS 24" Front-Load Washer
- Miele TXF 360 WP 24" T1 Heat-Pump Dryer
- WTS 510 Pedestal – when selected
- WTV 502 Stacking Kit – when selected
- WTV 512 Stacking Kit with Drawer – when selected
This compact Miele laundry pair provides advanced washing and drying performance while fitting comfortably into smaller laundry spaces. Install the appliances side by side, place them on optional pedestals, or stack them using a compatible Miele stacking kit.
All Things Clean is an authorized Miele dealer offering expert guidance, scheduled installation services, and ongoing appliance support.
Miele WXF 980 WCS Washer + TXF 360 WP Dryer Pair Features
- Compact 24" Laundry Pair: Premium Miele washer and heat-pump dryer designed for smaller laundry spaces without sacrificing performance.
- Matched Platinum Class Set: Coordinated W1 washer and T1 dryer featuring Obsidian Black doors with white accent rings.
- 18 lb Capacity Each: Matching washer and dryer capacities make this pair ideal for everyday household laundry.
- TwinDos Automatic Dispensing: The washer automatically dispenses detergent at the appropriate point in the wash cycle.
- IntenseWash: Advanced wash technology provides powerful, thorough cleaning.
- QuickIntenseWash: Delivers impressive cleaning results when you need laundry finished sooner.
- SingleWash: Adjusts the wash cycle for efficient care of smaller loads and individual items.
- SoftSteam: Helps reduce creasing and minimize ironing after washing.
- CapDosing: The washer supports portioned Miele capsules for specialized detergent and fabric care.
- 1,600 RPM Maximum Spin: High-speed extraction helps remove more water before drying.
- 11 Wash Programs: Normal, Delicates, Sanitize, Handwash, Dress Shirts, Darks/Denims, QuickIntenseWash, Express, Extra White, Freshen-up, and Drain/Spin.
- Ventless Heat-Pump Dryer: No external venting is required, providing greater installation flexibility.
- PerfectDry: Helps prevent over- or under-drying for more consistent fabric care.
- 10 Drying Programs: Normal, Delicates, Bed Linens, Woolens, Dress Shirts, Denims/Jeans, Express, Outdoor, Proofing, and TimeDry/DryFresh.
- FragranceDos2: Supports two optional Miele fragrance flacons for flexible, personalized freshness.
- Wash2Dry: The washer can share cycle information with the dryer to help it select the appropriate drying program.
- Miele@home Connectivity: Both appliances support convenient app-based features through a compatible Wi-Fi network.
- Honeycomb Drum Fabric Care: Sculpted drum surfaces help protect clothing during both washing and drying.
- DirectSensor Controls: Clear white text and touch controls provide a consistent interface across both appliances.
- 120-Volt Appliances: Both units operate on 120 V, 60 Hz, and 15 A electrical connections.
- Water Control System: The washer monitors water intake for added protection and peace of mind.
Miele WXF 980 WCS Washer + TXF 360 WP Dryer Specifications
| Specification | Washer – WXF 980 WCS | Dryer – TXF 360 WP |
|---|---|---|
| Type | W1 Front-Load Washer | T1 Heat-Pump Dryer |
| Product Class | Platinum | Platinum |
| Capacity | 18 lb / 8 kg | 18 lb / 8 kg |
| Width | 23 1/2" | 23 1/2" |
| Height | 33 1/2" | 33 1/2" |
| Depth | 25 3/8" | 25 3/8" |
| Weight | 212 lbs | 135 lbs |
| Voltage | 120 V | 120 V |
| Fuse Rating | 15 A | 15 A |
| Frequency | 60 Hz | 60 Hz |
| Maximum Spin Speed | 1,600 RPM | — |
| Controls | DirectSensor with White Text | DirectSensor with White Text |
| Programs | 11 Wash Programs | 10 Drying Programs |
| Steam Function | SoftSteam | No |
| Wash / Drying Technology | IntenseWash, QuickIntenseWash, and SingleWash | Ventless Heat Pump with PerfectDry |
| Detergent / Fragrance System | TwinDos and CapDosing | FragranceDos2 |
| Drum | Honeycomb Drum | Honeycomb Drum |
| Connectivity | Miele@home, MobileStart, and Wash2Dry | Miele@home, MobileStart, and Wash2Dry |
| Door Design | Obsidian Black with White Ring | Obsidian Black with White Ring |
| Material Number | 12962090 | 12819080 |
| Article Number | 11XF9801NAM | 12XF3602NAM |
| EAN | 4002516984702 | 4002516944737 |
Laundry Pair Configuration Dimensions
| Configuration | Approx. Width | Approx. Height | Approx. Depth |
|---|---|---|---|

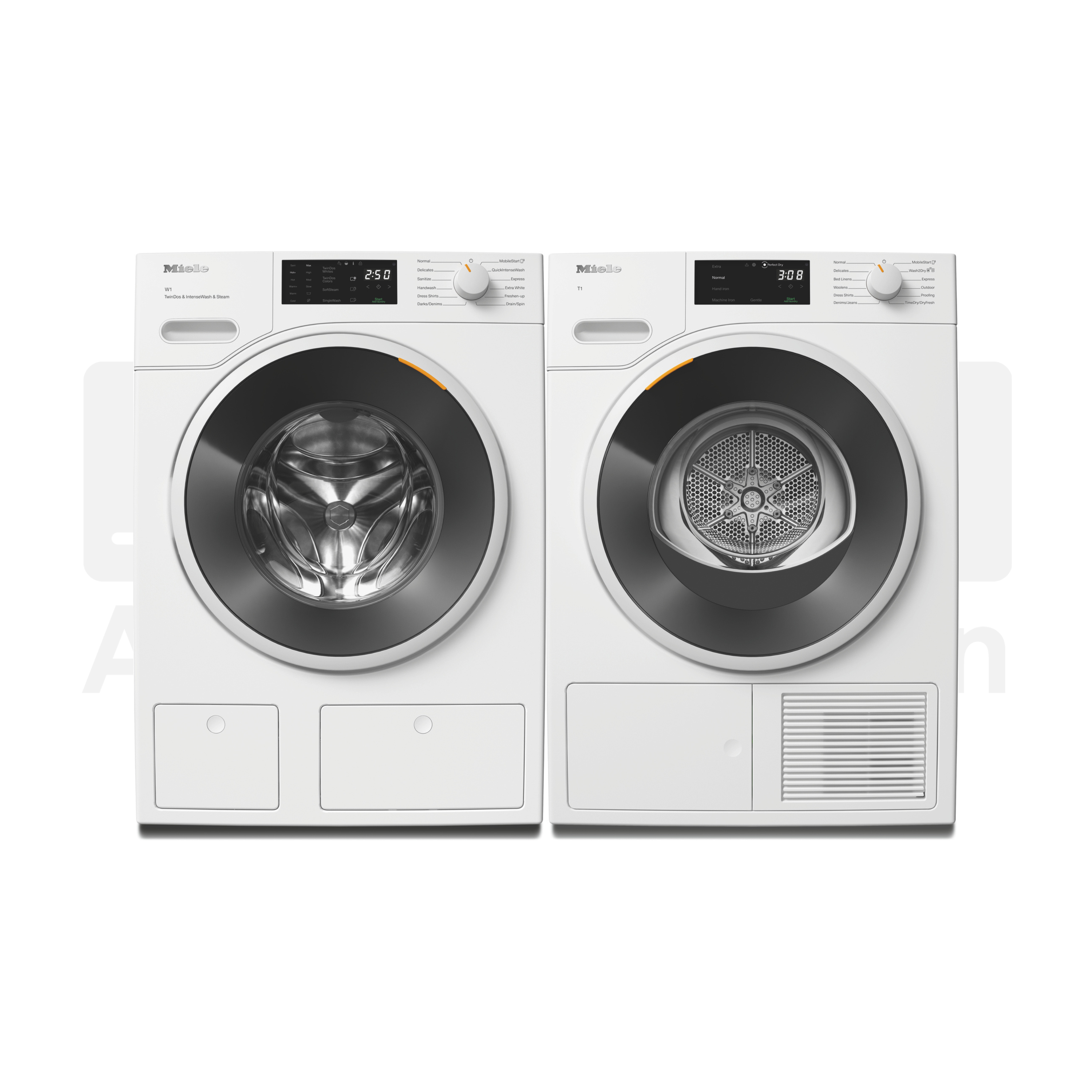

| Side by Side on Floor | 47" | 33 1/2" - 34 3/4" | 25 3/8" |

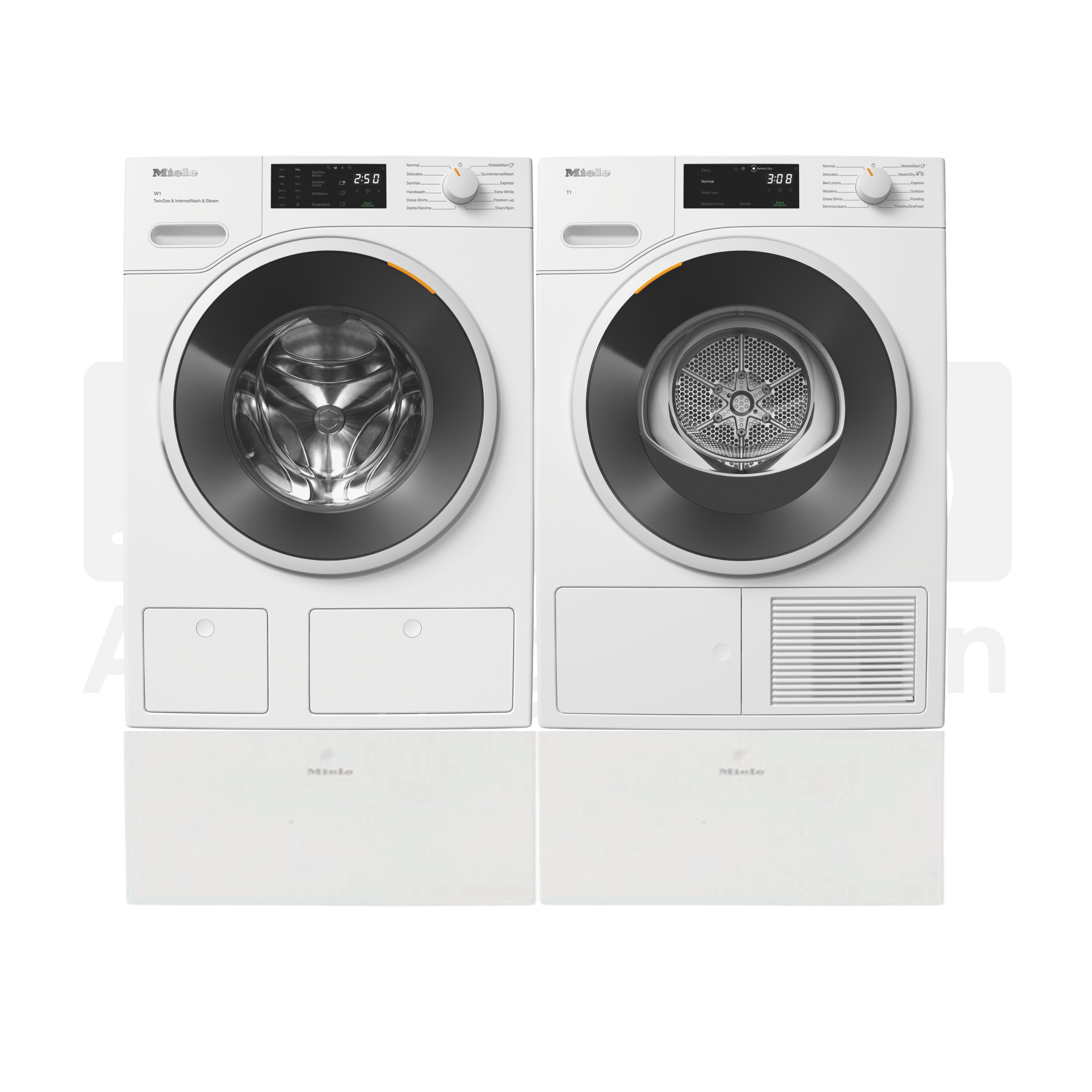

| Side by Side on WTS 510 Pedestals | 47" | 47 3/8" | 25 3/8" |

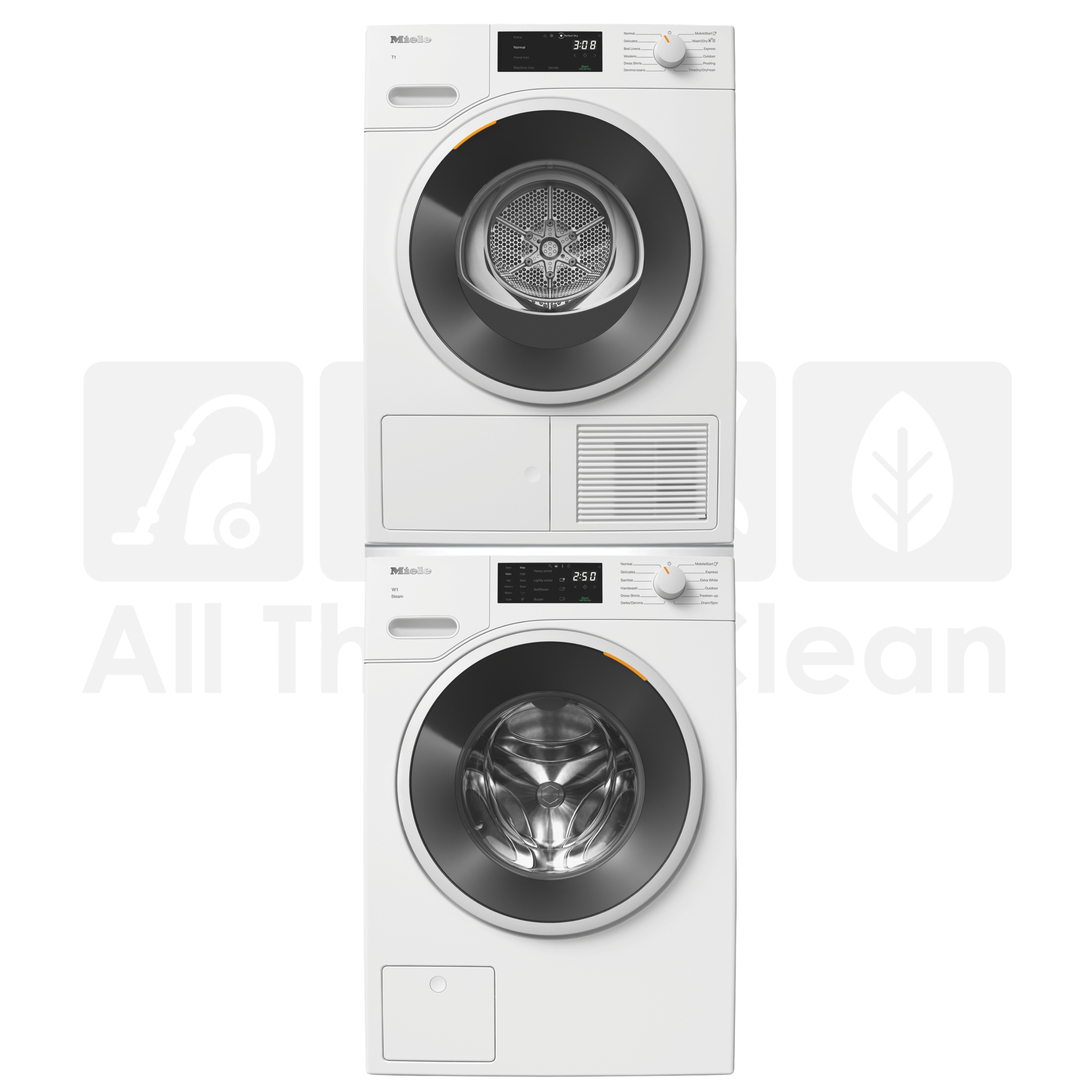

| Stacked with WTV 502 | 23 1/2" | 67 3/4" - 69" | 25 3/8" |
| Stacked with WTV 512 Stacking Drawer | 23 1/2" | 70 7/8" | 25 3/8" |
White Glove Delivery & Installation
For customers throughout the Greater Bay Area, All Things Clean offers professional white glove delivery and installation services for your new appliances.
Our experienced installation team handles the entire process so you can enjoy your new Miele laundry system without the hassle.
- Full delivery and installation by trained Miele technicians
- Professional setup and testing to ensure proper operation
- Haul-away of your old appliance when applicable
- All required parts included - no installation kits necessary
- Proper leveling and configuration for stacked or side-by-side setups
We ensure your appliances are installed correctly, safely, and ready to use before we leave your home.
Warranty: 2 Years standard. Protect your investment with 5-year total coverage:
Note: Warranty extensions are sold per appliance and must be added separately.
