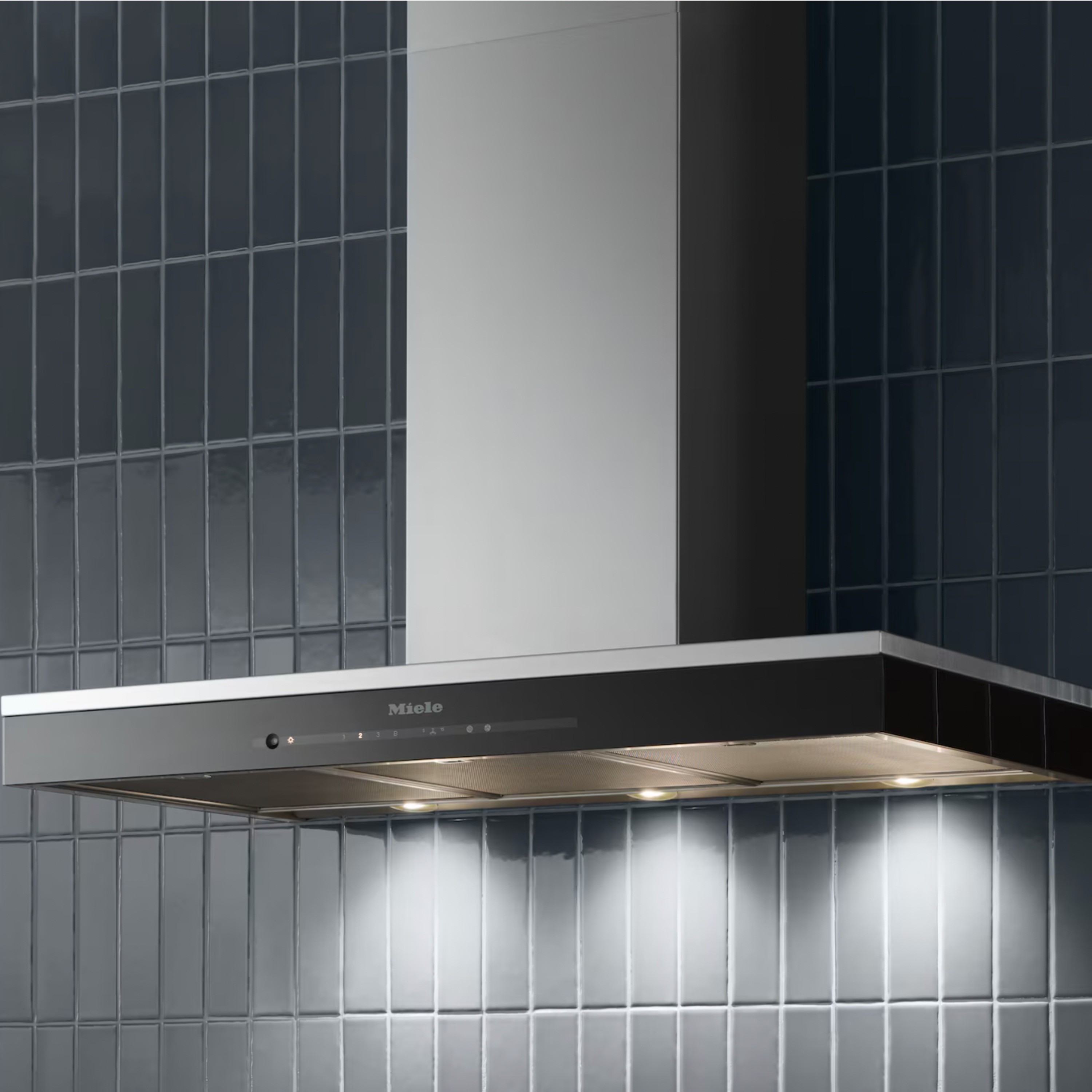

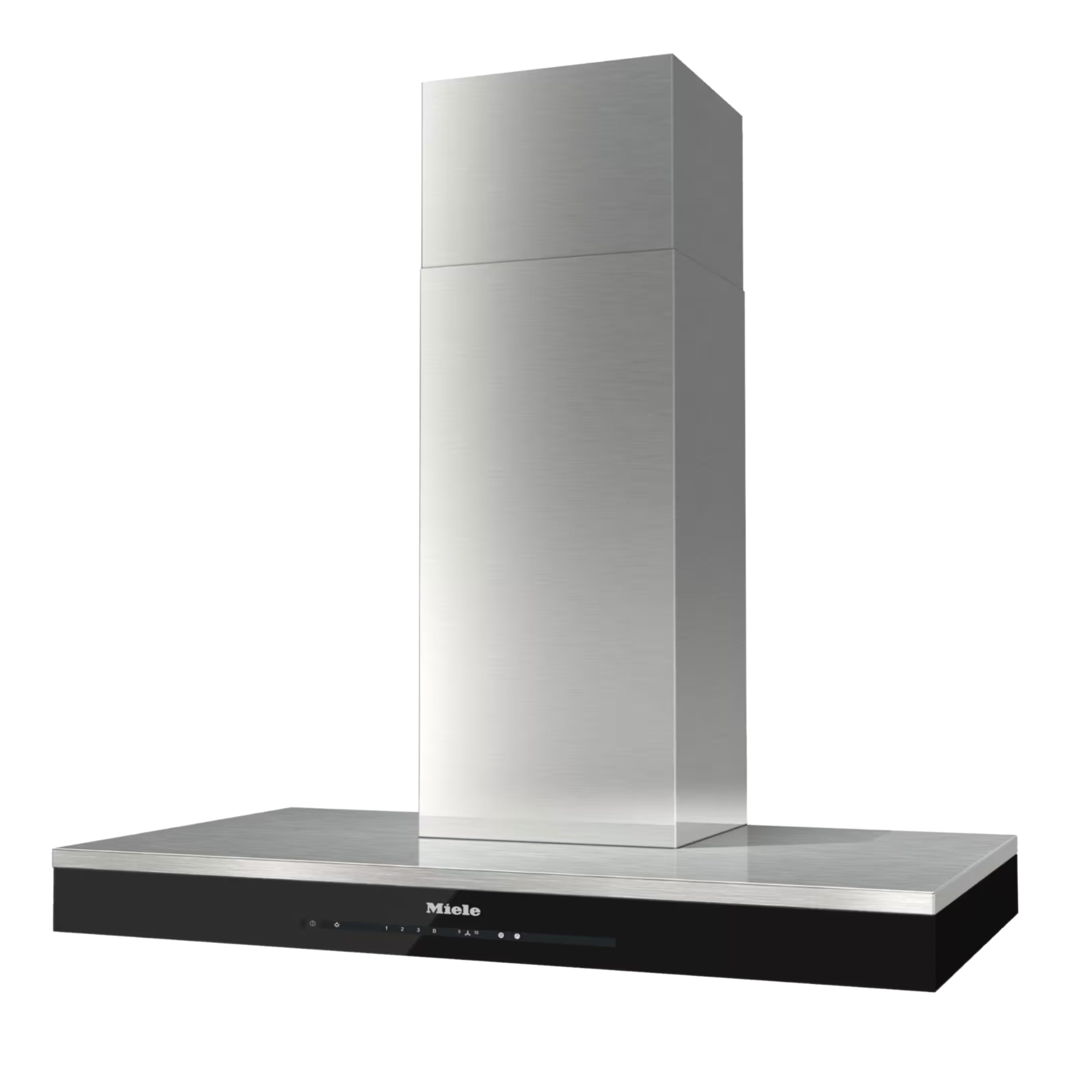

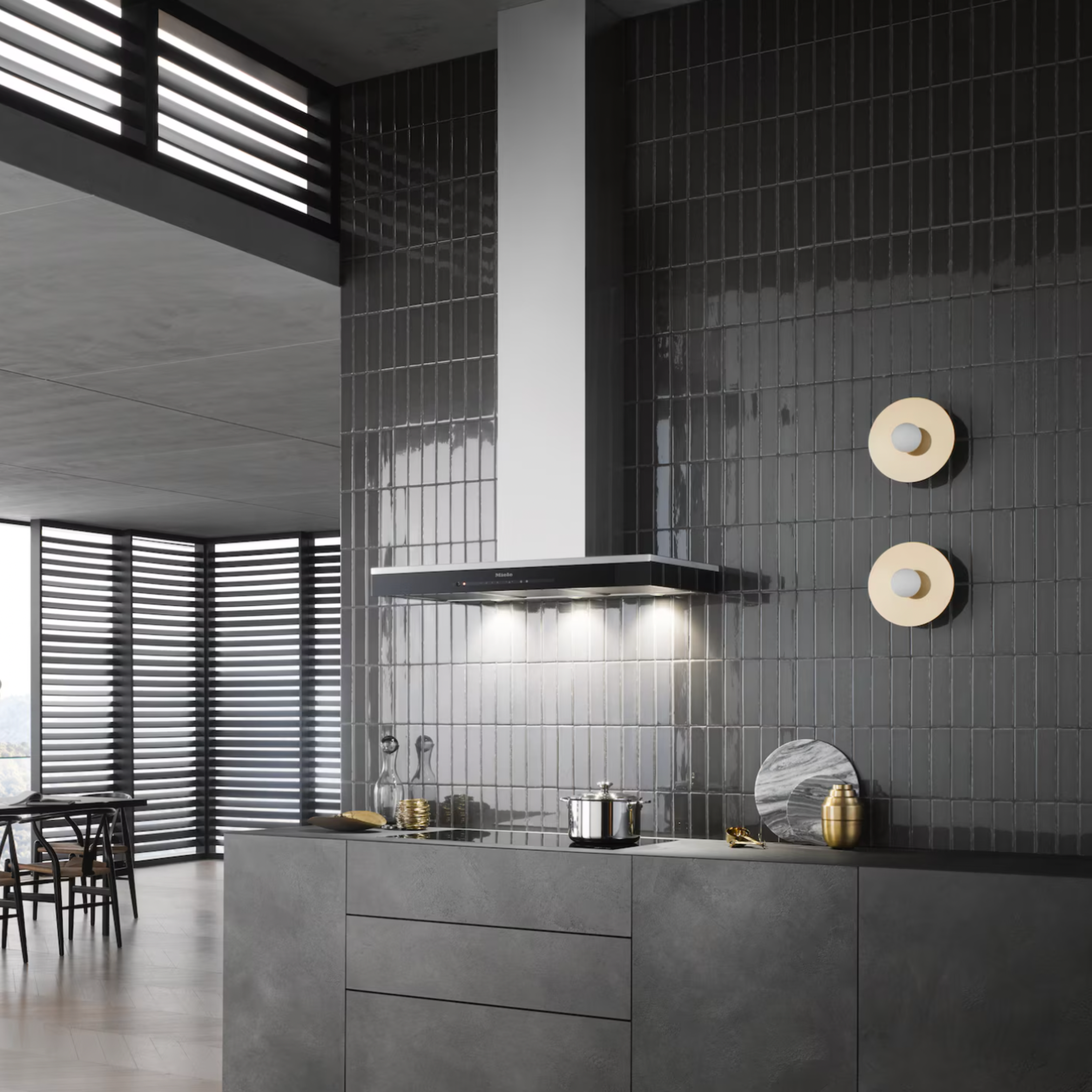

Elevate your kitchen with the Miele DA 6698 W Puristic Edition 6000 36" Wall Ventilation Hood, a premium wall-mounted range hood combining powerful ventilation, sophisticated design, and intelligent technology. Available in Stainless Steel and Obsidian Black, this elegant ventilation hood coordinates beautifully with Miele kitchen appliances while delivering exceptional everyday performance.
Equipped with a high-performance dual-action blower delivering up to 489 CFM in Booster mode, the DA 6698 W effectively removes cooking fumes, airborne grease, and unwanted odors. Three standard ventilation levels and an additional Booster setting provide flexible extraction performance, while Miele's Silence acoustic package helps reduce operating noise for a quieter, more comfortable cooking environment.
Miele's innovative Con@ctivity technology enables the ventilation hood to communicate with compatible Miele cooktops, automatically adjusting ventilation performance based on cooking activity. Intuitive touch-on-glass controls provide convenient manual operation, while integrated Miele@home connectivity supports compatible smart-home features, smartphone notifications, and software updates.
Designed for effective grease removal, the DA 6698 W features three dishwasher-safe, 10-ply stainless steel grease filters that efficiently capture airborne grease particles while allowing convenient maintenance. Miele's CleanCover interior features smooth, enclosed surfaces that simplify cleaning while helping protect against contact with internal electrical and motor components.
Three energy-efficient 3W LED lights provide bright, uniform illumination across the cooking surface, delivering 670 lux with a 3500K color temperature. The convenient dimming function allows you to adjust the lighting to suit food preparation or create ambient kitchen illumination.
Additional conveniences include a 5- or 15-minute automatic delayed shutdown to help clear lingering cooking odors, grease and charcoal filter saturation indicators, automatic safety shut-off, and a telescopic chimney for installation flexibility.
The DA 6698 W supports ducted exterior ventilation or optional recirculation using the separately purchased Miele DUW 20 conversion kit and compatible DKF 12-P charcoal filter, making it adaptable to different kitchen layouts and ventilation requirements.

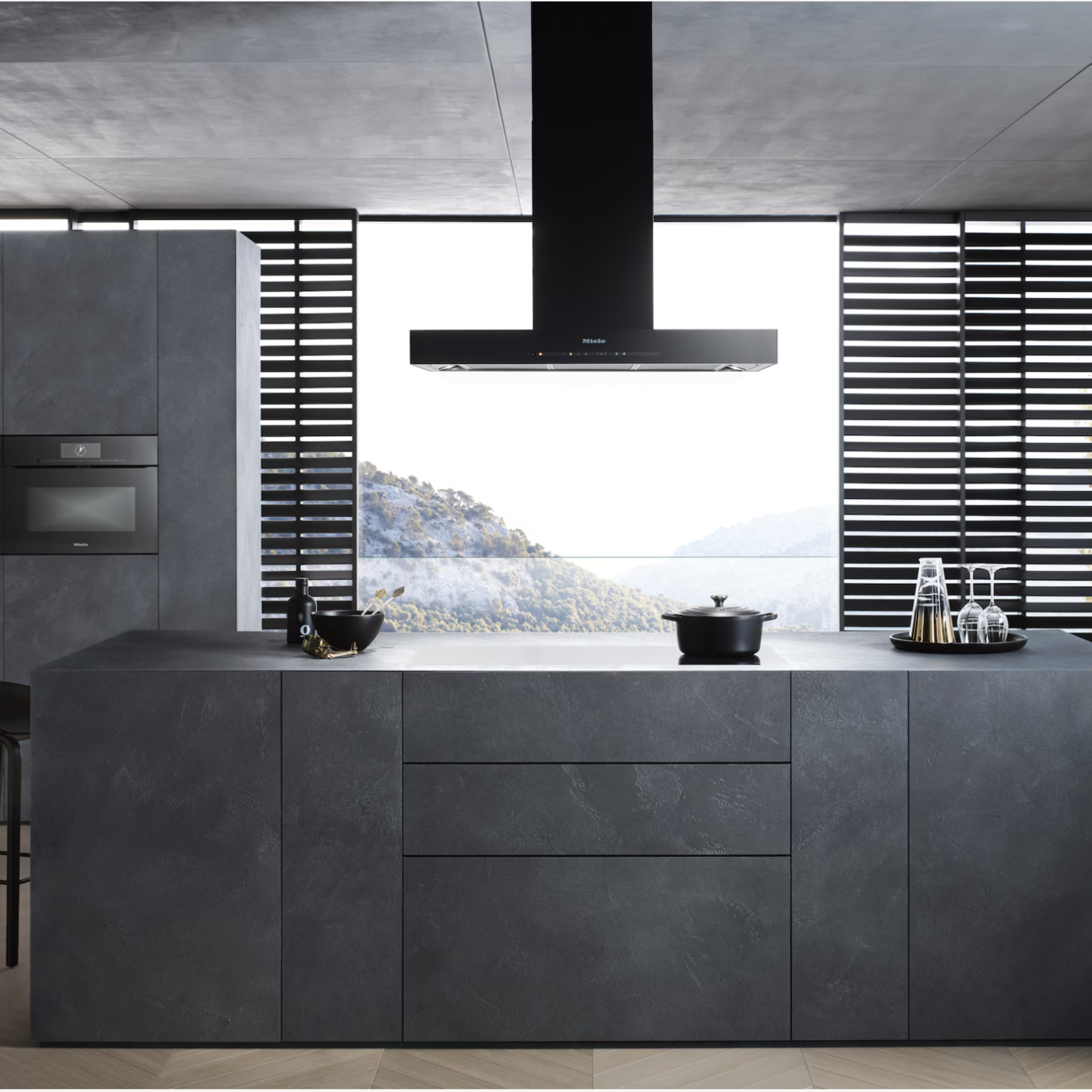

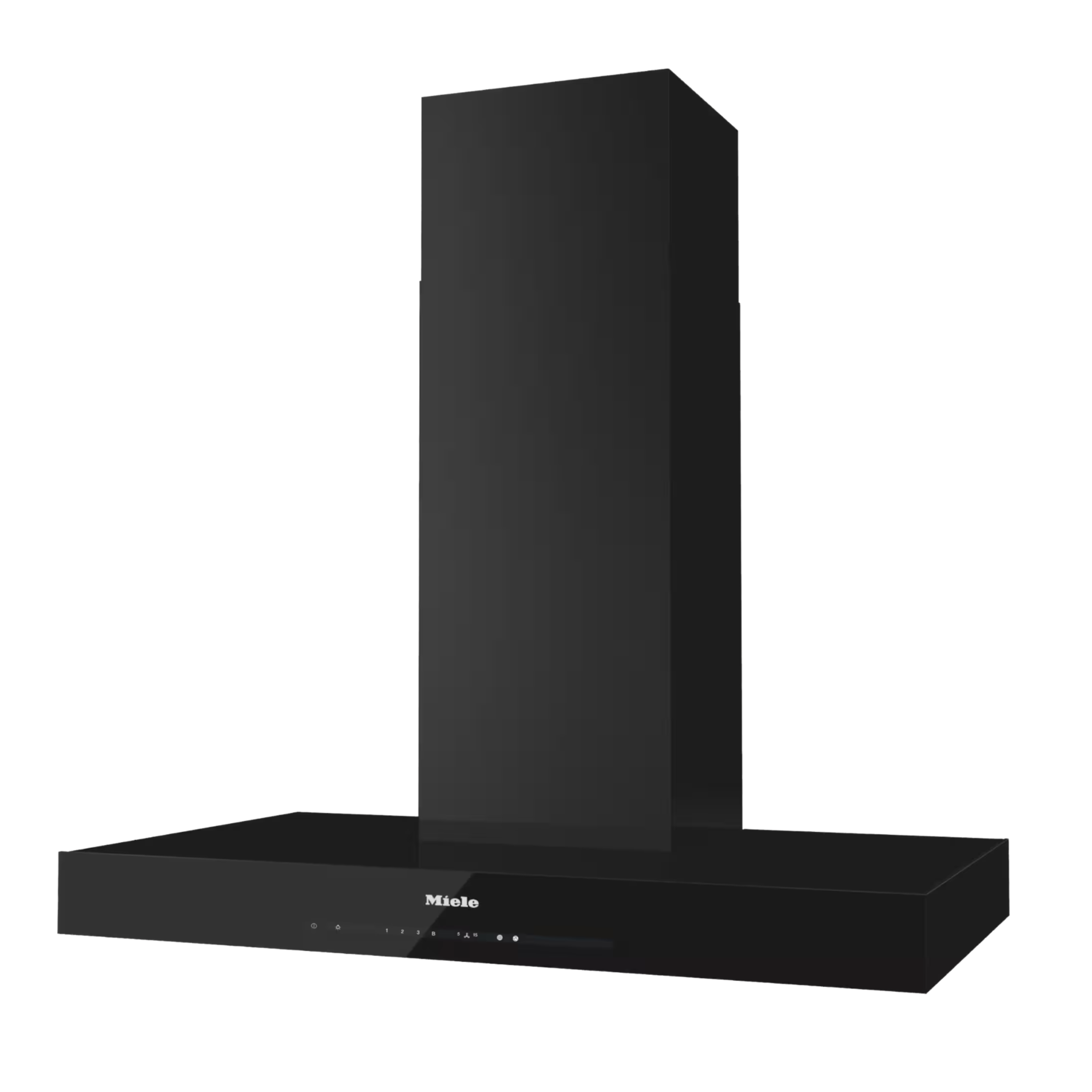

Available Finishes: Stainless Steel and Obsidian Black. Select your preferred finish to complement your kitchen design.
Combining intelligent ventilation, elegant styling, easy-to-maintain filtration, and trusted Miele engineering, the DA 6698 W Puristic Edition 6000 delivers an exceptional combination of performance, convenience, and sophisticated design.
- 36" Wall-Mounted Design: Premium wall ventilation hood available in Stainless Steel or Obsidian Black to complement modern kitchen designs.
- Powerful 489 CFM Ventilation: Integrated dual-action blower efficiently removes cooking fumes, airborne grease, and unwanted odors.
- Con@ctivity Technology: Automatically adjusts ventilation performance based on cooking activity from compatible Miele cooktops.
- Touch-on-Glass Controls: Intuitive electronic controls provide convenient operation with a sleek, sophisticated appearance.
- Three Power Levels + Booster: Adjustable ventilation settings provide flexible performance for everyday and intensive cooking.
- Silence Acoustic Package: Special sound-insulating materials help minimize operating noise for a quieter kitchen environment.
- Three 10-Ply Stainless Steel Grease Filters: Dishwasher-safe filters efficiently capture airborne grease particles and simplify routine maintenance.
- Dimmable LED Lighting: Three energy-efficient 3W LED lights provide 670 lux illumination with adjustable brightness.
- Miele CleanCover: Smooth, enclosed interior surfaces make cleaning easier while helping prevent contact with internal components.
- Automatic Delayed Shutdown: Continues ventilation for 5 or 15 minutes after cooking before automatically switching off.
- Filter Saturation Indicators: Convenient reminders indicate when grease or optional charcoal filters require maintenance.
- Miele@home Connectivity: Supports compatible smart-home features, smartphone notifications, and connected appliance functionality.
- Voice Control Compatibility: Supports compatible Amazon Alexa and Google voice-control services, subject to availability and configuration.
- RemoteUpdate: Supports software updates through Miele's connected appliance platform.
- Automatic Safety Shut-Off: Automatically switches off after 10 hours of continuous operation.
- Telescopic Chimney: Adjustable chimney construction accommodates compatible wall-mounted installations.
- Flexible Ventilation Options: Supports ducted extraction or optional recirculation using separately purchased Miele accessories.
- Safety Glass Construction: Single-pane safety glass complements the premium exterior design.
- 6" Top Vent Connection: Designed for connection to compatible kitchen exhaust ductwork.
- Two Available Finishes: Choose between Stainless Steel and Obsidian Black with identical ventilation performance and functionality.
| Brand | Miele |
| Model | DA 6698 W Puristic Edition 6000 |
| Product Type | Wall Ventilation Hood |
| Product Series | Platinum |
| Available Finishes | Stainless Steel / Obsidian Black |
| Material Number - Stainless Steel | 10877010 |
| Material Number - Obsidian Black | 10877060 |
| Nominal Width | 36" |
| Canopy Dimensions (W x H x D) | 35 3/8" x 3 3/8" x 19 5/8" |
| Installation Type | Wall-Mounted |
| Ventilation Type | Ducted / Convertible to Recirculation |
| Overall Height - Ducted | 28" - 40 1/2" |
| Overall Height - Recirculation | 33 1/8" - 45 5/8" |
| Maximum Airflow | 489 CFM (Booster) |
| Blower | Integrated Dual-Action Blower |
| Controls | Electronic Touch-on-Glass Controls |
| Power Levels | 3 Standard Levels |
| Booster Levels | 1 |
| Automatic Ventilation | Miele Con@ctivity |
| Acoustic Insulation | Miele Silence Acoustic Package |
| Grease Filters | 3 Dishwasher-Safe 10-Ply Stainless Steel Filters |
| Lighting | 3 x 3W LED Lights |
| Light Intensity | 670 Lux |
| Color Temperature | 3500 K |
| Light Dimming | Yes |
| Interior Cleaning System | Miele CleanCover |
| Delayed Shutdown | 5 or 15 Minutes |
| Filter Saturation Indicators | Grease and Charcoal Filters |
| Smart Connectivity | Miele@home |
| Voice Control | Compatible Alexa / Google Services |
| Connected Features | Push Notifications, RemoteUpdate, Smart Home Integration |
| Safety Features | Automatic Safety Shut-Off / Single-Pane Safety Glass |
| Minimum Height Above Electric Cooktop | 24" |
| Minimum Height Above Gas Cooktop | 26" (Subject to Burner Ratings) |
| Vent Connection | Top |
| Vent Diameter | 6" (150 mm) |
| Chimney | Telescopic |
| Voltage | 120V |
| Frequency | 60 Hz |
| Electrical Requirement | 15A / Single Phase |
| Plug Type | NEMA 5-15 |
| Connected Load | 0.35 kW |
| Power Cord Length | 2 ft. |
| Net Weight | 58 lbs. |
| Recirculation Conversion Kit | Miele DUW 20 (Sold Separately) |
| Compatible Charcoal Filter | Miele DKF 12-P (Sold Separately) |
| Included Accessory | Non-Return Flap |
| EAN - Stainless Steel | 4002516024620 |
| EAN - Obsidian Black | 4002516024644 |
Technical Specifications by Finish:
📄 View Full Technical Specifications - Stainless Steel (PDF)
Warranty: 2 Years standard.
