Discover extraordinary cooking versatility with the Miele DGC 7840 AM 24" Compact Combi-Steam Oven XL. Part of Miele's premium Diamond collection, this sophisticated built-in appliance combines the functionality of a convection oven, steam oven, and combination steam oven in one elegant design. Available in Stainless Steel, Graphite Grey, and Obsidian Black, the DGC 7840 AM brings advanced culinary technology and timeless styling to the modern kitchen.
Featuring Miele's innovative DualSteam technology, the DGC 7840 AM distributes steam quickly and evenly throughout the oven compartment, helping preserve the natural flavors, textures, and nutrients of your favorite ingredients. With Combi-Steam cooking, you can combine traditional oven heat with precisely controlled humidity to achieve beautifully browned exteriors and tender, juicy interiors when baking, roasting, and preparing gourmet meals.
The spacious 1.7 cu. ft. (48-liter) stainless steel oven compartment offers three cooking levels, allowing you to prepare multiple dishes simultaneously. Miele's intelligent Automatic Menu Cooking coordinates the cooking time and sequence of different foods, while automatic programs simplify preparation and help deliver consistent results.

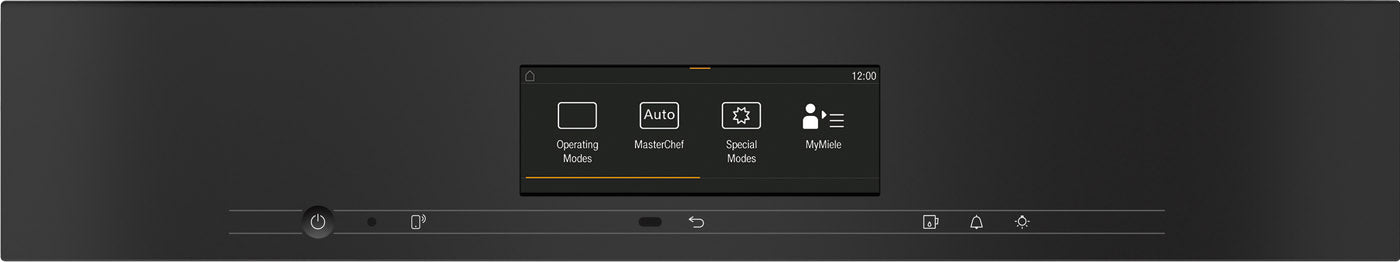

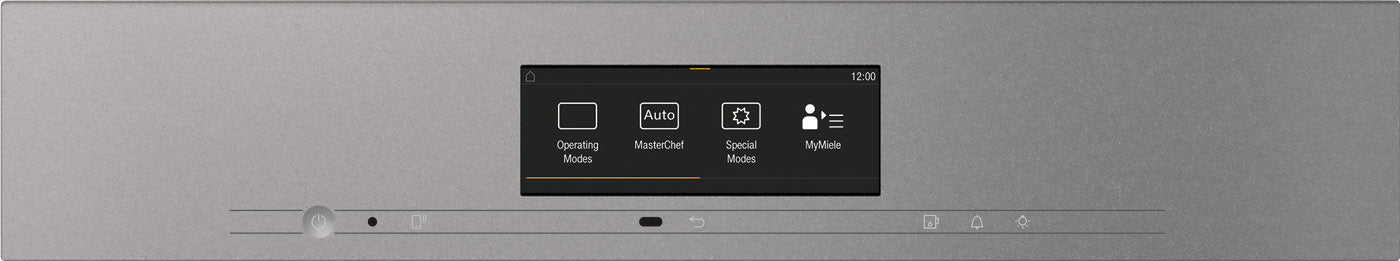

Designed for ultimate convenience, the DGC 7840 AM features a large M Touch display with MotionReact proximity sensor, providing intuitive access to cooking modes, temperature settings, and personalized programs. A motorized lift-up control panel with SoftClose conceals the fresh-water and condensate containers while maintaining a refined, seamless exterior appearance.
Expand your culinary possibilities with versatile operating modes including Steam Cooking, Convection Bake, Combi-Steam, AirFry, Sous-Vide, Broiling, Reheating, and Defrosting. The integrated wired food probe monitors internal food temperatures for more precise roasting, while the Crisp Function helps produce golden, crispy results when desired.
Integrated Miele@home connectivity supports compatible smart-home functions and connected appliance features, including Miele Mix & Match, personalized recipes, and supported notifications. The premium BrilliantLight oven lighting provides excellent visibility throughout the cooking compartment.
Cleaning and maintenance are simplified by the durable PerfectClean stainless steel oven interior, external steam generation, removable side racks, and dedicated soaking, rinsing, drying, and descaling programs. The convenient CleanGlass door also supports easier maintenance.
With a wide range of cooking capabilities, advanced steam technology, precise temperature control, and intelligent user conveniences, the Miele DGC 7840 AM delivers the versatility of multiple cooking appliances in one premium compact oven.

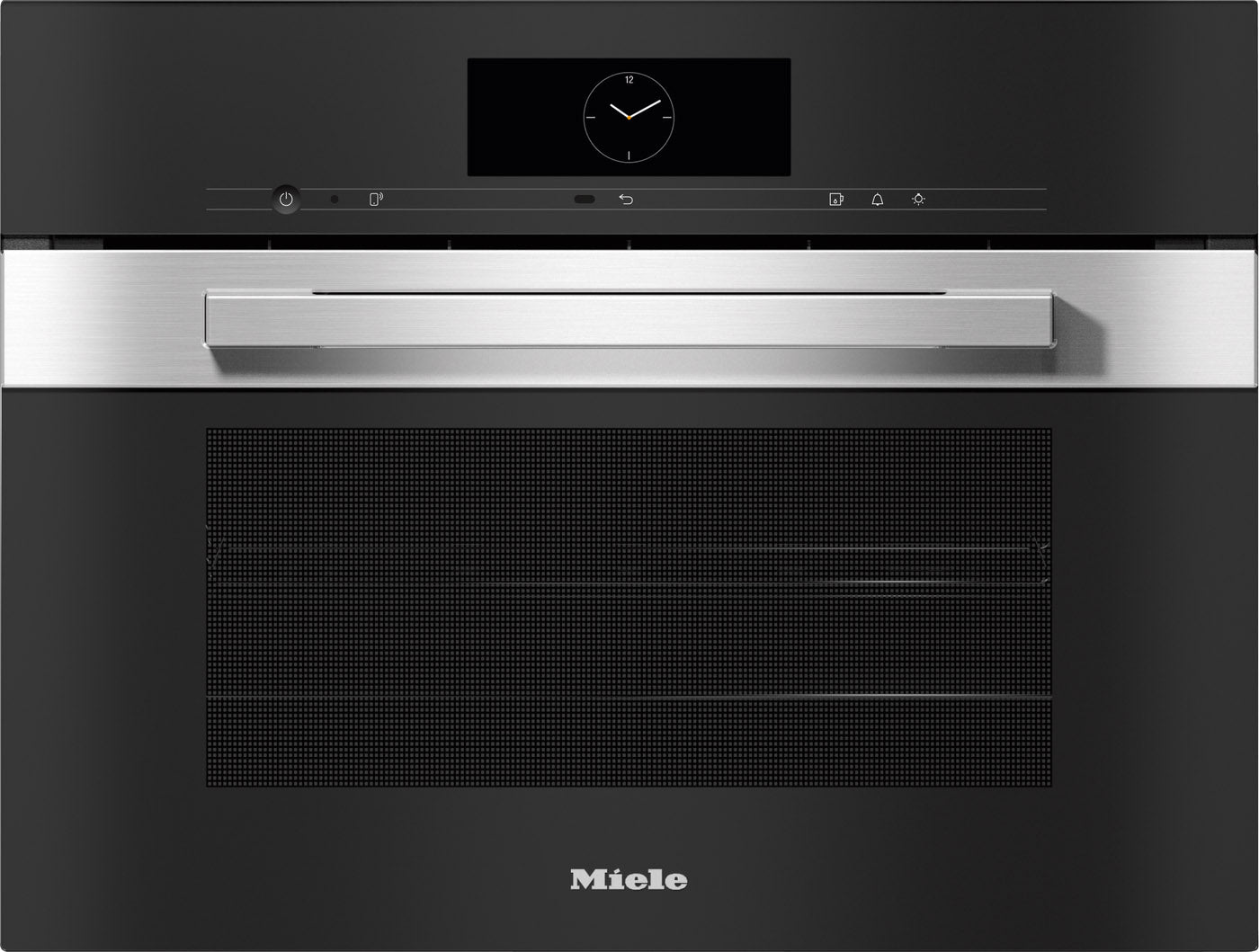

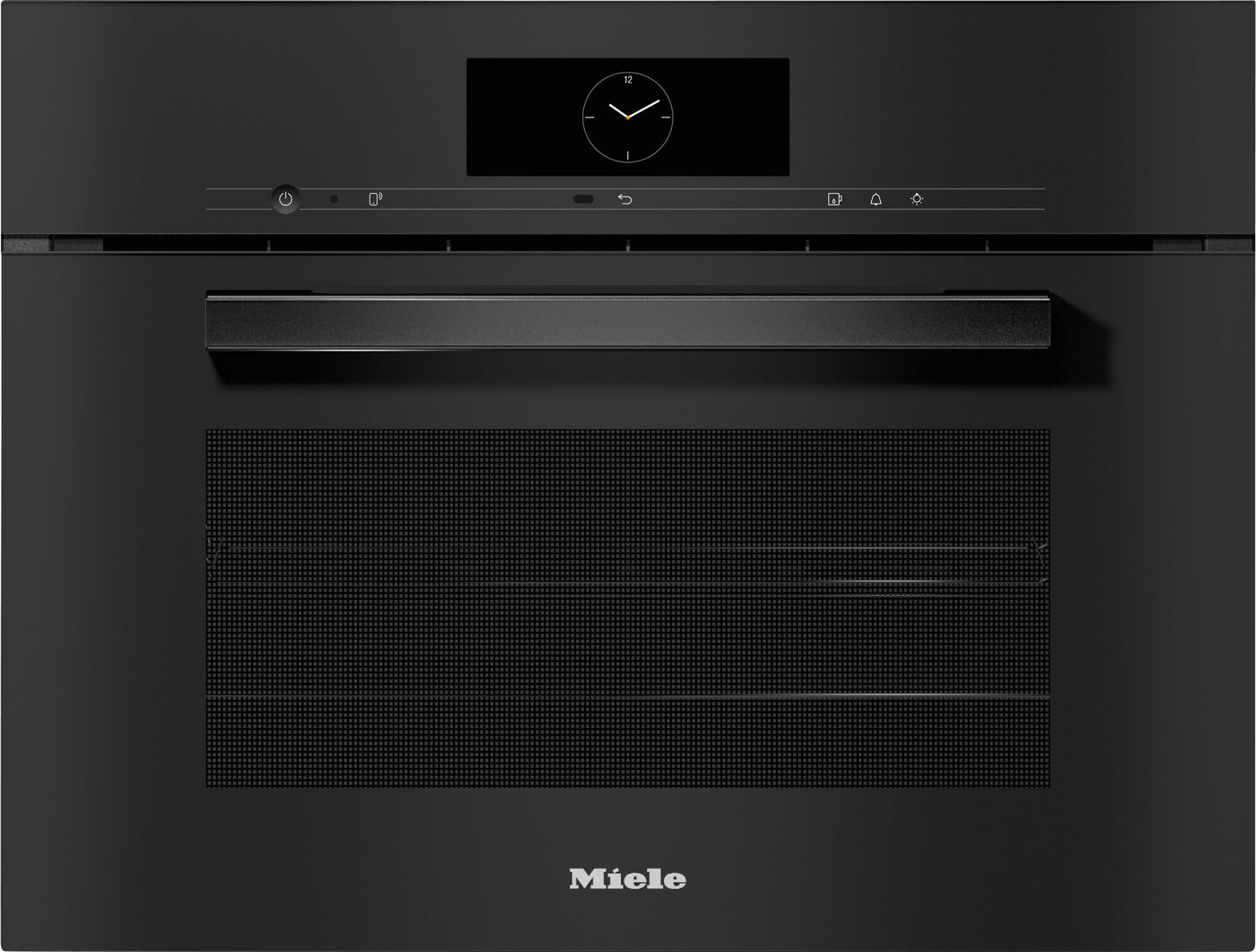

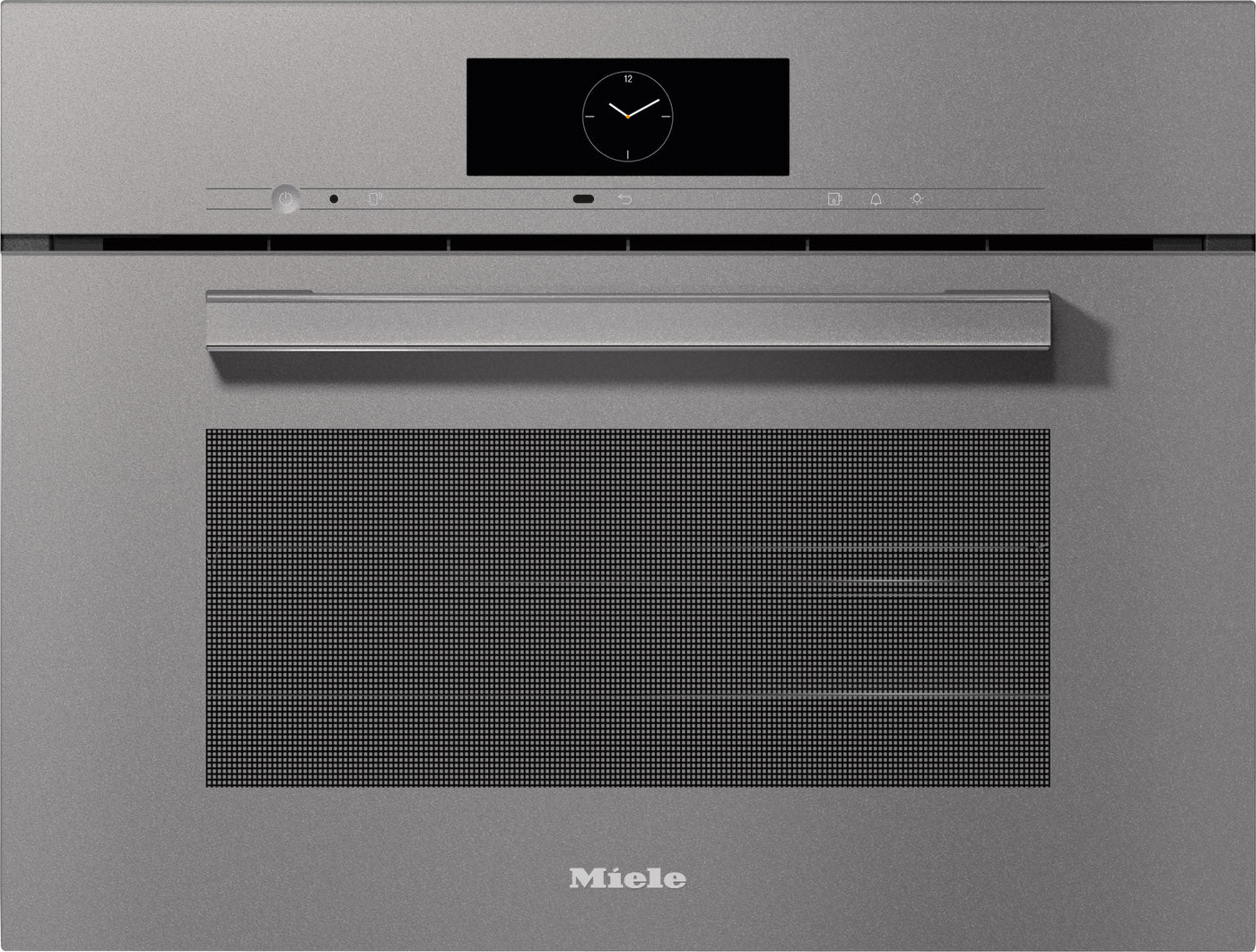

Available Finishes: Stainless Steel / Clean Touch Steel, Graphite Grey, and Obsidian Black. Select your preferred finish to coordinate with your Miele kitchen appliances.
- 24" Compact Combi-Steam Oven XL: Premium built-in oven combining convection cooking, steam cooking, and combination steam cooking in one appliance.
- Three Available Finishes: Choose Stainless Steel / Clean Touch Steel, Graphite Grey, or Obsidian Black.
- DualSteam Technology: Powerful external steam generation distributes steam quickly and evenly for consistent cooking results.
- Combi-Steam Cooking: Combines dry oven heat with adjustable humidity for crisp exteriors and tender, juicy interiors.
- 1.7 Cu. Ft. Oven Capacity: Spacious 48-liter stainless steel compartment with three rack levels for versatile meal preparation.
- M Touch Controls: Large, intuitive touchscreen provides convenient access to cooking modes, automatic programs, and personalized settings.
- MotionReact Proximity Sensor: Intelligent sensor responds when you approach the appliance for added convenience.
- Motorized Lift-Up Control Panel: Elegant SoftClose panel conceals the fresh-water and condensate containers.
- Automatic Menu Cooking: Coordinates the cooking sequence and timing of different foods without transferring flavors.
- Steam Cooking on Three Levels: Prepare multiple dishes simultaneously using Miele's quantity-independent steam cooking technology.
- AirFry Function: Prepare crispy foods using hot circulating air.
- Sous-Vide Cooking: Precisely cook vacuum-sealed foods at controlled low temperatures.
- Crisp Function: Reduces moisture when needed to create golden, crispy surfaces.
- Wired Food Probe: Monitors internal food temperature to help achieve precise roasting results.
- Automatic Cooking Programs: Convenient preset programs simplify the preparation of a variety of dishes.
- Rapid PreHeat: Helps bring the oven to the selected temperature quickly.
- BrilliantLight Interior Lighting: Premium lighting provides excellent visibility throughout the oven compartment.
- Miele@home Connectivity: Supports compatible smart-home features, push notifications, recipes, and connected appliance functions.
- Miele Mix & Match: Connected cooking functionality provides additional meal preparation possibilities.
- PerfectClean Stainless Steel Interior: Durable oven compartment with an easy-clean linen-weave surface.
- External Steam Generation: Generates steam outside the cooking cavity to help reduce limescale buildup inside the oven.
- Automatic Maintenance Programs: Includes soaking, rinsing, drying, and descaling functions for convenient maintenance.
- SoftOpen and SoftClose Door: Smooth, controlled door operation provides comfortable everyday use.
- Cool-Touch Front: Integrated appliance cooling helps maintain safer exterior temperatures.
- Comprehensive Safety Features: Includes safety shut-off, safety cut-out, system lock, and sensor lock.
- Diamond Collection: Miele's premium cooking technology with refined design and versatile performance.
| Brand | Miele |
| Model | DGC 7840 AM |
| Product Type | Compact Combi-Steam Oven XL |
| Product Series | Diamond |
| Design Lines | PureLine / VitroLine (Finish Dependent) |
| Available Finishes | Stainless Steel / Clean Touch Steel, Graphite Grey, Obsidian Black |
| Material Number - Stainless Steel | 11876590 |
| Material Number - Graphite Grey | 11876600 |
| Material Number - Obsidian Black | 11876610 |
| Nominal Width | 24" |
| Appliance Dimensions (W x H x D) | 23 3/8" x 18" x 22 3/8" (595 x 456 x 569 mm) |
| Cabinet Cutout Width | 22" - 22 3/8" (560-568 mm) |
| Cabinet Cutout Height | 17 3/4" (450-452 mm) |
| Minimum Cabinet Depth | 21 7/8" (555 mm) |
| Installation Type | Built-In |
| Oven Capacity | 1.7 cu. ft. (48 Liters) |
| Number of Rack Levels | 3 |
| Oven Temperature Range | 85°F - 450°F (30°C - 230°C) |
| Primary Cooking Functions | Steam, Convection, Combi-Steam |
| Additional Cooking Modes | AirFry, Sous-Vide, Broil, Convection Broil, Maxi Broil, Surround, Intensive, Bake, Browning |
| Combination Cooking | Combi-Steam with Convection Bake, Surround, or Maxi Broil |
| Special Functions | Defrost, Reheat, Humidity Plus, Keep Warm, Rapid PreHeat |
| Steam Technology | DualSteam |
| Steam Generation | External Steam Generator |
| Humidity Control | Adjustable Humidity in Combination Cooking |
| Steam Cooking Levels | Up to 3 Simultaneously |
| Fresh Water Container Capacity | 1.4 Liters |
| Water Supply | Removable Fresh Water Container |
| Condensate Collection | Removable Condensate Container |
| Direct Water Connection | No |
| Controls | M Touch |
| Proximity Sensor | MotionReact |
| Control Panel | Motorized Lift-Up with SoftClose |
| Automatic Programs | Yes |
| Automatic Menu Cooking | Yes |
| Food Probe | Wired (Included) |
| Crisp Function | Yes |
| Timer Functions | Minute Minder, Programmable Start/End Times, Cooking Duration |
| Smart Connectivity | Miele@home / Wi-Fi |
| Connected Features | Mix & Match, Recipes, Push Notifications, RemoteUpdate |
| Voice Control | Compatible Alexa / Google Services |
| Interior Material | Stainless Steel with PerfectClean Finish |
| Interior Lighting | BrilliantLight |
| Door Hinge | Bottom |
| Door Operation | SoftOpen / SoftClose |
| Cleaning Programs | Soak, Rinse, Cavity Drying, Descaling |
| Other Cleaning Features | Foldable Broil Element, Removable Side Racks, CleanGlass Door |
| Safety Features | Cool-Touch Front, Safety Shut-Off, Safety Cut-Out, System Lock, Sensor Lock |
| Voltage | 208-240V |
| Frequency | 60 Hz |
| Fuse Rating | 20A |
| Electrical Connection | Power Cord with Plug |
| Plug Type | NEMA 6-20 |
| Connected Load | 2.80-3.70 kW (Voltage Dependent) |
| Net Weight | Approximately 92 lbs. (41.5 kg) |
| Included Universal Tray | 1 x HUBB 71 with PerfectClean |
| Included Wire Rack | 1 x HBBR 71 with PerfectClean |
| Included Telescopic Runners | 1 Pair HFC 71 PerfectClean FlexiClip |
| Included Cooking Containers | 2 Perforated Stainless Steel / 1 Solid Stainless Steel |
| Included Food Probe | 1 Wired Food Probe |
| Included Side Racks | 1 Pair Removable PerfectClean Side Racks |
| Included Descaling Tablets | 2 |
| EAN - Stainless Steel | 4002516487494 |
| EAN - Graphite Grey | 4002516487814 |
| EAN - Obsidian Black | 4002516487623 |
Technical Specifications by Finish:
📄 View Full Technical Specifications - Stainless Steel (PDF)
Warranty: 2 Years standard. Upgrade to a full 5-Year Warranty for added protection.
