Elevate your everyday cooking experience with the Miele H 7660 BP AM 24" Convection Wall Oven with Moisture Plus and Self Clean. Part of Miele's premium Platinum collection, this sophisticated built-in oven combines precise convection cooking, intelligent automatic programs, and advanced moisture-assisted baking technology in a beautifully integrated 24-inch design. Available in Graphite Grey, Obsidian Black, and Stainless Steel / Clean Touch Steel, the H 7660 BP AM complements a wide range of premium Miele kitchens.
Featuring a generous 2.97 cu. ft. (84-liter) oven compartment with five rack levels, the H 7660 BP AM provides outstanding flexibility for baking, roasting, broiling, and preparing multiple dishes. Miele's precision convection system distributes heated air throughout the oven to promote consistent cooking results, whether you're baking pastries, roasting meats, or preparing family meals.
Miele's innovative Moisture Plus technology introduces controlled bursts of steam during selected cooking programs to help produce light, fluffy baked goods, beautifully browned bread crusts, and tender, flavorful roasts. Dedicated Moisture Plus modes can be combined with Convection Bake, AutoRoast, Intensive Bake, and Surround, providing additional versatility for everything from artisan bread to gourmet entrees.
Enjoy greater control over your cooking with Miele's advanced TasteControl function, which rapidly cools the oven compartment at the end of a cooking program to help prevent food from continuing to cook. An optional keep-warm function maintains prepared dishes at a suitable serving temperature, making meal timing more convenient.
The elegant M Touch S touchscreen with MotionReact proximity sensor makes selecting temperatures, cooking modes, automatic programs, and personalized favorites intuitive and convenient. Miele's MasterChef automatic programs simplify preparation of a wide range of dishes, while the included wired roast probe monitors internal food temperatures for more precise cooking results.
Expand your culinary possibilities with operating modes including Convection Bake, Surround, AutoRoast, Intensive Bake, Broil, Convection Broil, Browning, Slow Roast, and Defrost. Additional functions such as Rapid PreHeat and Crisp Function help shorten preparation time and create beautifully crispy, golden finishes.
Cleaning is simplified with Miele's convenient pyrolytic Self Clean system, which uses high temperatures to break down baked-on food residue. The included Self Clean-ready baking and roasting racks and FlexiClip telescopic runners support comfortable cooking and easy maintenance, while the smooth CleanGlass door helps simplify routine cleaning.
Integrated Miele@home Wi-Fi connectivity supports compatible connected appliance functions, recipes, notifications, and software updates. Additional premium conveniences include SoftOpen and SoftClose door operation, automatic residual heat utilization, and interior oven lighting.
With its elegant PureLine or VitroLine styling, intuitive controls, precise cooking functions, and versatile moisture-assisted baking, the Miele H 7660 BP AM Convection Wall Oven combines outstanding performance and timeless design for the modern kitchen.

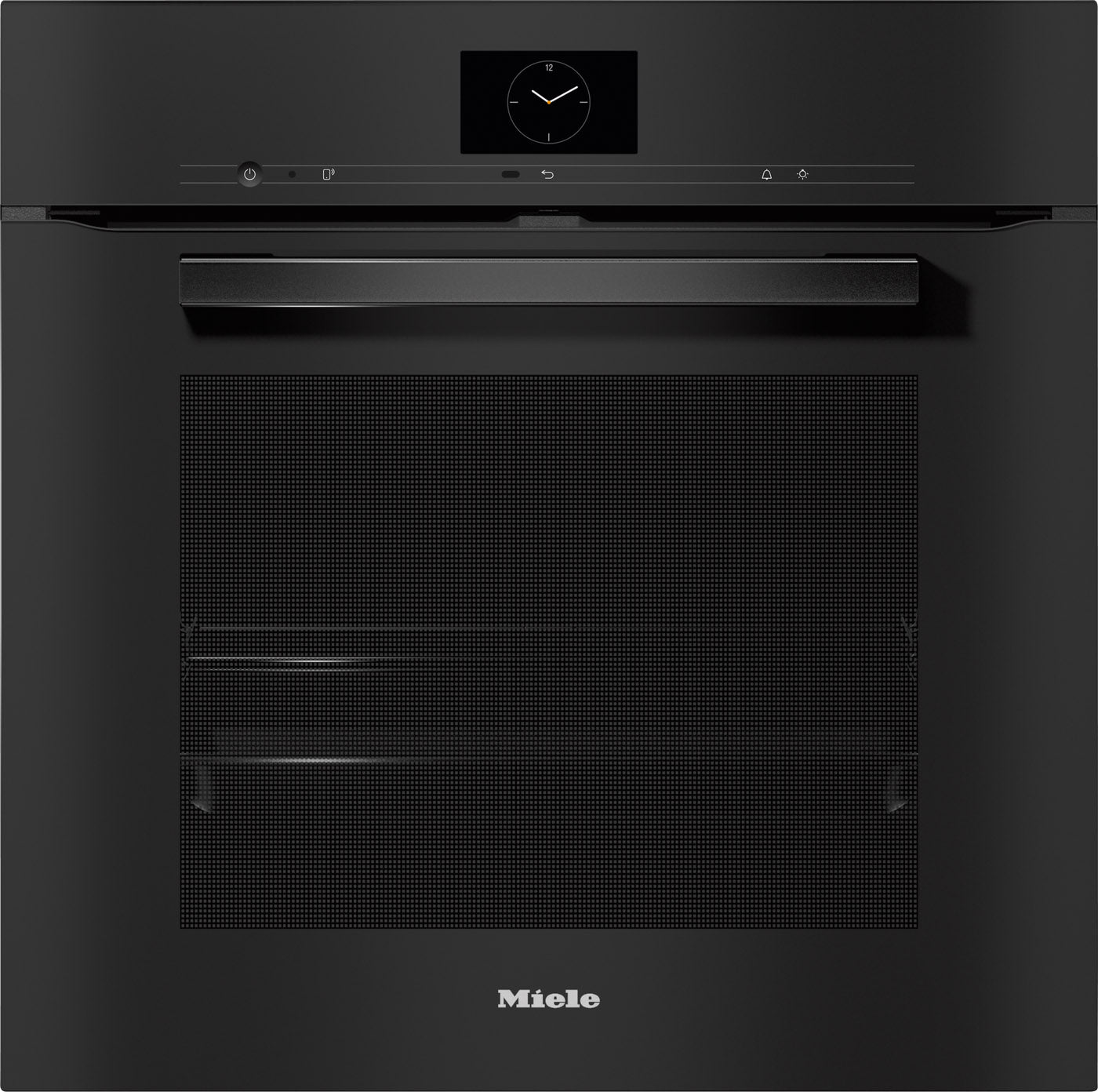

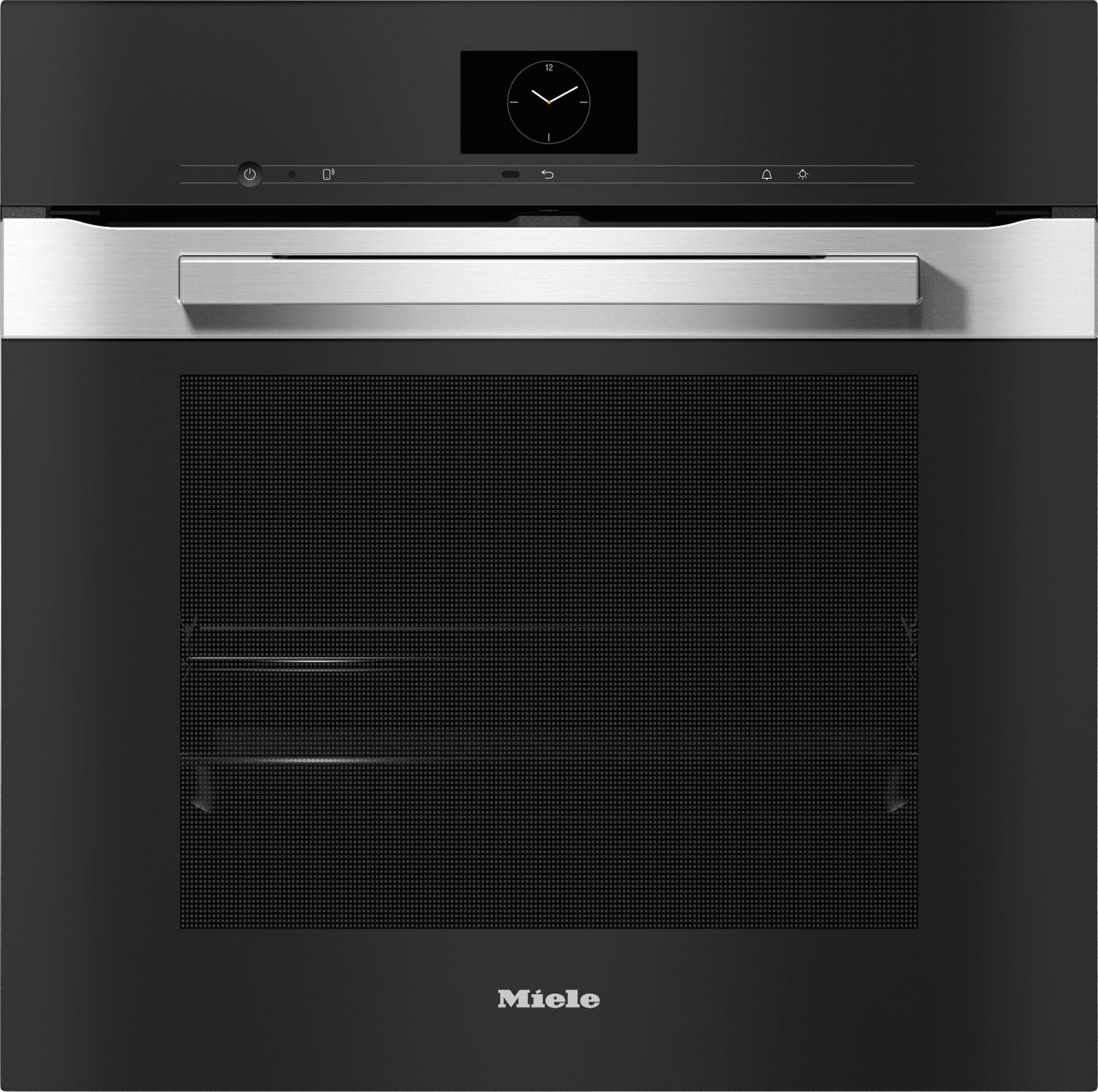

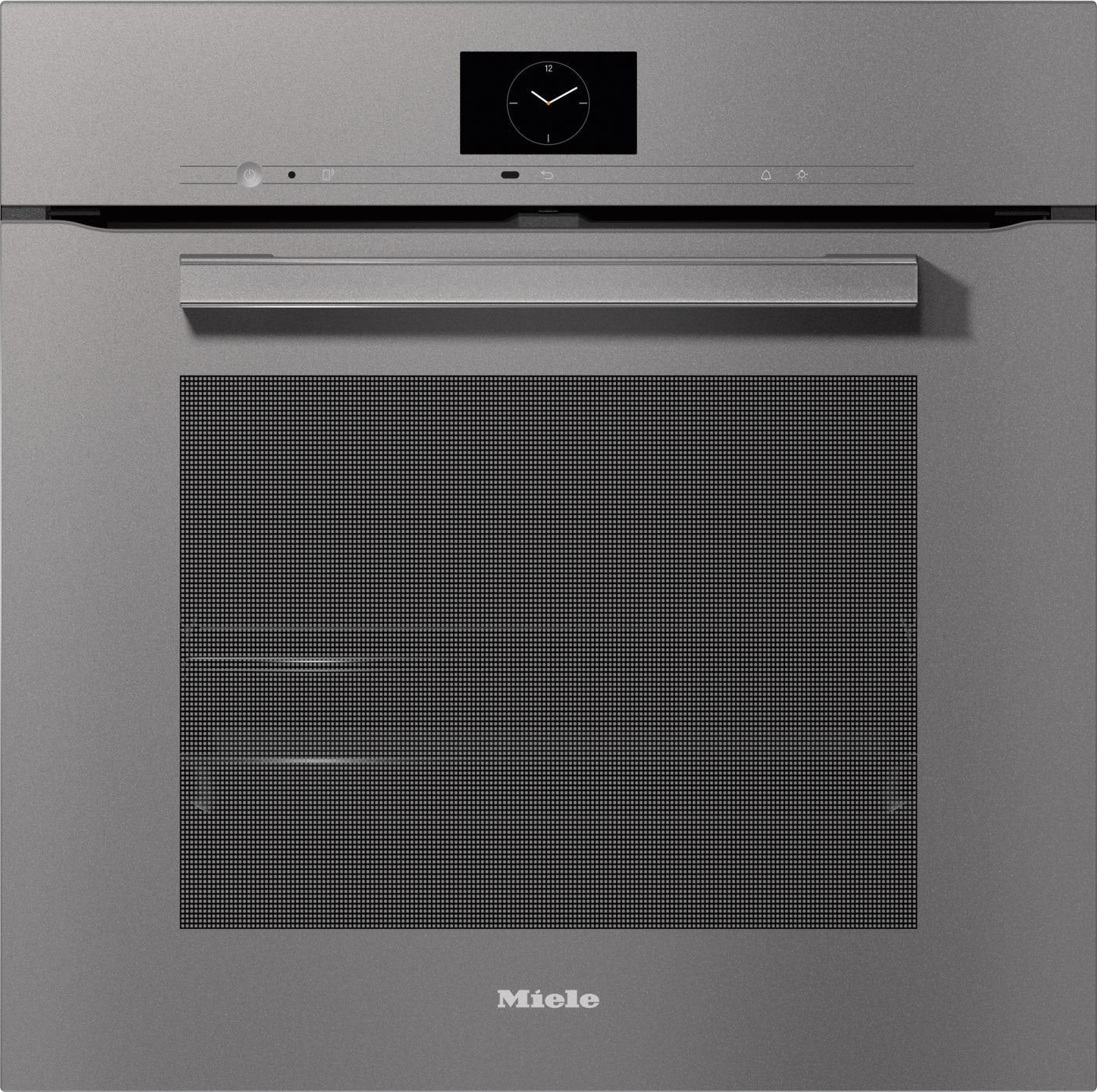

Available Finishes: Graphite Grey, Obsidian Black, and Stainless Steel / Clean Touch Steel. Select your preferred finish to coordinate with your Miele kitchen appliances.
Moisture Plus Water Supply: Uses an integrated water intake pipe for moisture-assisted cooking. A permanent water supply or wastewater drain connection is not required.
- 24" Built-In Convection Wall Oven: Premium Platinum-series oven available in Graphite Grey, Obsidian Black, and Stainless Steel / Clean Touch Steel.
- 2.97 Cu. Ft. Capacity: Spacious 84-liter oven compartment accommodates a variety of baking, roasting, and broiling needs.
- Five Rack Levels: Flexible cooking positions support multiple trays, roasting dishes, and everyday meal preparation.
- Moisture Plus Technology: Introduces controlled bursts of steam for light baked goods, beautifully browned crusts, and tender roasts.
- Moisture-Assisted Cooking Modes: Combines Moisture Plus with Convection Bake, AutoRoast, Intensive Bake, and Surround.
- TasteControl: Automatically cools the oven after cooking to help prevent overcooking, with an optional keep-warm function.

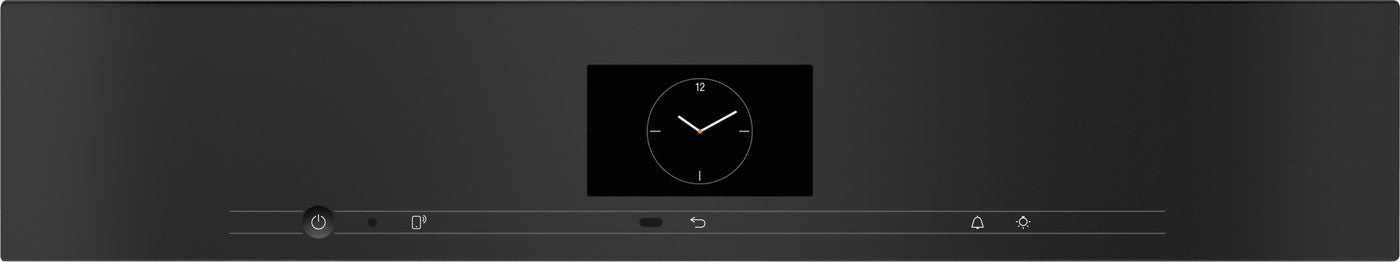

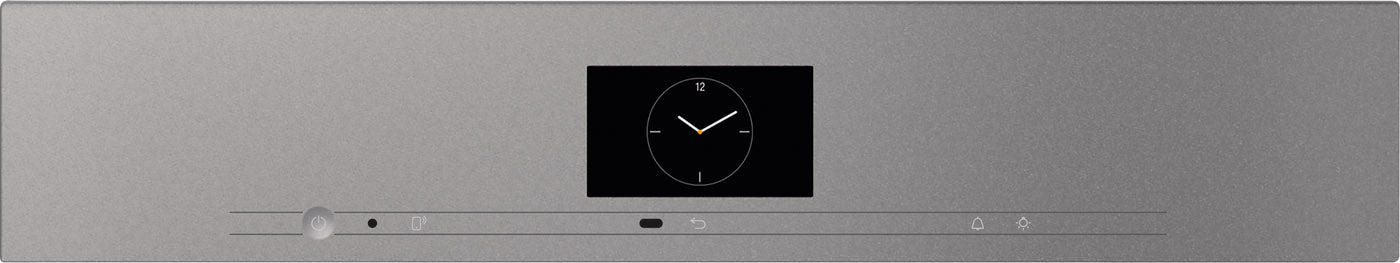

- M Touch S Display: Premium touchscreen provides intuitive access to cooking modes, temperatures, automatic programs, and personalized settings.
- MotionReact Proximity Sensor: Responds when approaching the appliance to activate convenient display and lighting functions.
- MasterChef Automatic Programs: Built-in programs simplify the preparation of meats, fish, baked goods, and other dishes.
- Wired Roast Probe: Monitors internal food temperatures to help achieve precise roasting results.
- Rapid PreHeat: Brings the oven to the selected cooking temperature quickly for efficient meal preparation.
- Crisp Function: Reduces moisture inside the oven compartment for golden, crispy results.
- Versatile Cooking Modes: Includes Convection Bake, Surround, Intensive Bake, AutoRoast, Broil, Convection Broil, Browning, Bake, Slow Roast, and Defrost.
- 85°F-575°F Temperature Range: Wide temperature adjustment supports gentle warming, baking, and high-temperature roasting.
- Pyrolytic Self Clean: High-temperature cleaning process breaks down baked-on food residue for convenient maintenance.
- Self Clean-Ready Accessories: Includes compatible baking and roasting racks, FlexiClip telescopic runners, and removable side racks.
- FlexiClip Telescopic Runners: Provide convenient access to food and cookware inside the oven.
- CleanGlass Door: Smooth interior door surface makes routine cleaning easier.
- SoftOpen and SoftClose: Smooth, controlled door operation enhances everyday convenience.
- Miele@home Wi-Fi Connectivity: Supports compatible connected appliance features, recipes, notifications, and RemoteUpdate.
- MyMiele and Favorites: Save frequently used settings and cooking programs for convenient access.
- MultiLingua: Choose from multiple display languages for personalized operation.
- Programmable Timers: Set cooking duration, start time, end time, and minute minder.
- Automatic Residual Heat Utilization: Helps use remaining heat efficiently during cooking.
- Cool-Touch Front: Integrated appliance cooling helps maintain safer exterior temperatures.
- Integrated Safety Features: Includes safety cut-out, system lock, sensor lock, and automatic door locking during Self Clean.
- Moisture Plus Intake System: Uses a water intake pipe to supply moisture-assisted cooking without permanent plumbing.
- Premium Design Options: Choose VitroLine glass styling or PureLine Stainless Steel / Clean Touch Steel.
| Brand | Miele |
| Model | H 7660 BP AM |
| Product Type | Built-In Convection Wall Oven |
| Product Series | Platinum |
| Design Line | VitroLine (Graphite Grey / Obsidian Black), PureLine (Stainless Steel) |
| Available Finishes | Graphite Grey, Obsidian Black, Stainless Steel / Clean Touch Steel |
| Material Number - Graphite Grey | 11804840 |
| Material Number - Obsidian Black | 11804860 |
| Material Number - Stainless Steel | 11804810 |
| Nominal Width | 24" |
| Appliance Width | 23 1/2" (595 mm) |
| Appliance Height | 23 1/2" (596 mm) |
| Appliance Depth - Glass Finishes | 22 3/8" (568 mm) |
| Appliance Depth - Stainless Steel | 22 1/2" (569 mm) |
| Cabinet Cutout Width | 22" - 22 3/8" (560-568 mm) |
| Cabinet Cutout Height | 23 1/4" - 23 3/8" (590-595 mm) |
| Minimum Cabinet Depth | 21 5/8" (550 mm) |
| Installation Type | Built-In Wall Oven |
| Oven Capacity | 2.97 cu. ft. (84 Liters) |
| Number of Rack Levels | 5 |
| Rack Level Labeling | Yes |
| Temperature Range | 85°F-575°F (30°C-300°C) |
| Convection Bake | Yes |
| Surround | Yes |
| Intensive Bake | Yes |
| AutoRoast | Yes |
| Convection Broil | Yes |
| Maxi Broil | Yes |
| Broil | Yes |
| Browning | Yes |
| Bake | Yes |
| Slow Roast | Yes |
| Defrost | Yes |
| Moisture Plus | Yes |
| Moisture Plus with AutoRoast | Yes |
| Moisture Plus with Convection Bake | Yes |
| Moisture Plus with Intensive Bake | Yes |
| Moisture Plus with Surround | Yes |
| Moisture Control | Timed Bursts of Steam |
| Water Intake System | Integrated Intake Pipe |
| Steam Generator Power | 1.10 kW |
| Fresh-Water Volume Listed | 0.3 Liters |
| Permanent Water Connection | Not Required |
| Permanent Wastewater Drain | Not Required |
| TasteControl | Automatic Rapid Cool-Down / Optional Keep Warm |
| Crisp Function | Yes |
| Rapid PreHeat | Yes |
| Automatic Cooking Programs | Yes / MasterChef |
| Roast Probe | Wired / Included |
| Controls | M Touch S Touchscreen |
| Proximity Sensor | MotionReact |
| Personalized Programs | Favorites / MyMiele |
| Operating Guidance | Show Me How / MultiLingua |
| Timer Functions | Minute Minder, Programmable Cooking Duration, Start and End Times |
| Actual Temperature Display | Yes |
| Audible Temperature Alert | Yes |
| Sabbath Program | Yes |
| Smart Connectivity | Miele@home / Wi-Fi |
| Connected Features | Recipes, Push Notifications, RemoteUpdate, Smart-Home Integration |
| Door Operation | SoftOpen / SoftClose |
| Interior Lighting | 1 Halogen Spotlight |
| Self-Cleaning System | Pyrolytic Self Clean |
| Self Clean-Ready Accessories | Yes |
| Foldable Broil Element | Yes |
| Door Interior | CleanGlass |
| Exterior Surface - Stainless Steel | Clean Touch Steel |
| Energy-Saving Feature | Automatic Residual Heat Utilization |
| Safety Features | Cool-Touch Front, Safety Cut-Out, System Lock, Sensor Lock, Self-Cleaning Door Lock |
| Electrical Supply | 120/240V or 120/208V |
| Frequency | 60 Hz |
| Fuse Rating | 30A |
| Electrical Phases | 1 |
| Total Connected Load | 5.40 kW |
| Electrical Connection | Power Cord with Plug |
| Plug Type | NEMA 14-30 |
| Power Cord Length | 1.80 m (Approx. 5 ft. 11") |
| Net Weight | Approx. 103 lbs. (46.5 kg) |
| Included Universal Tray | 1 x HUBB 71 with PerfectClean |
| Included Baking and Roasting Racks | 2 x Self Clean-Ready |
| Included FlexiClip Runners | 1 Pair Self Clean-Ready |
| Included Roast Probe | 1 x Wired |
| Included Side Racks | 1 Pair Removable Self Clean-Ready |
| Included Grilling and Roasting Insert | 1 x PerfectClean |
| Included Descaling Tablets | 2 |
| EAN - Graphite Grey | 4002516483830 |
| EAN - Obsidian Black | 4002516483847 |
| EAN - Stainless Steel | 4002516483823 |
Technical Specifications by Finish:
📄 View Full Technical Specifications - Graphite Grey (PDF)
📄 View Full Technical Specifications - Obsidian Black (PDF)
📄 View Full Technical Specifications - Stainless Steel (PDF)
Warranty: 2 Years standard. Upgrade to a full 5-Year Warranty for added protection.
