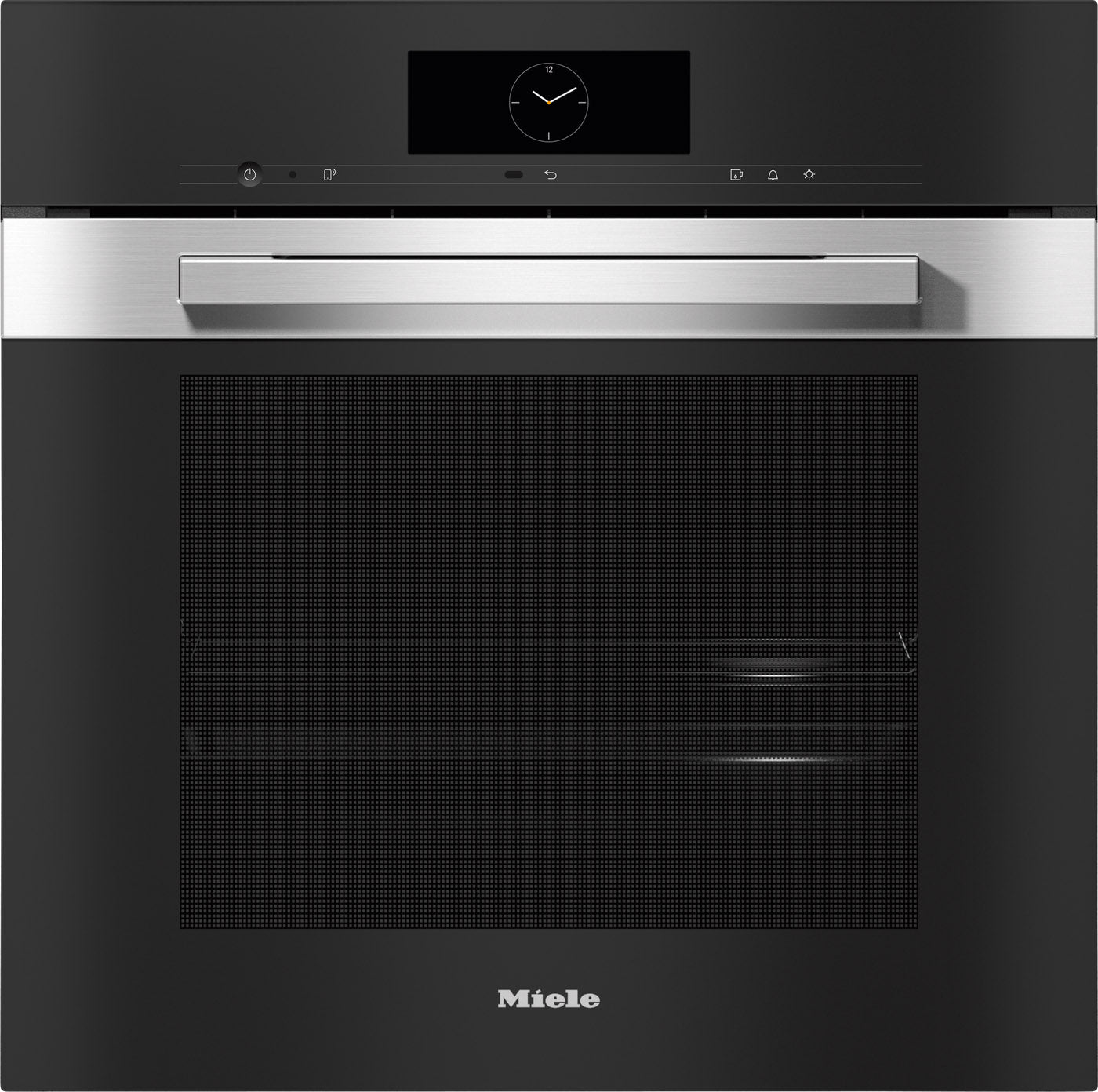

Experience exceptional cooking versatility with the Miele DGC 7865 AM 24" Combi-Steam Oven XXL with DirectWater Plus in Stainless Steel. Part of Miele's premium Diamond collection, this sophisticated built-in appliance combines the functionality of a convection oven, steam oven, and combination steam oven in one elegant design. With a generous 2.4 cu. ft. (68-liter) oven capacity, four cooking levels, and advanced steam technology, the DGC 7865 AM delivers outstanding performance in a space-efficient 24-inch format.
Featuring Miele's innovative DualSteam technology, the DGC 7865 AM generates and distributes steam quickly and evenly throughout the oven compartment, helping preserve the natural flavors, textures, and quality of your favorite ingredients. Its versatile Combi-Steam cooking combines traditional oven heat with individually adjustable humidity to achieve beautifully browned exteriors and tender, juicy interiors when roasting meats, baking bread, or preparing gourmet meals.
Miele's convenient DirectWater Plus system provides permanent connections to your home's fresh-water supply and wastewater drain. This integrated plumbing system eliminates the need to manually fill and empty water containers during everyday operation, making regular steam cooking more convenient.
The spacious XXL stainless steel oven compartment features four cooking levels, allowing multiple dishes to be prepared simultaneously. Miele's intelligent Automatic Menu Cooking coordinates the temperature, timing, and cooking sequence of different ingredients, while quantity-independent steam cooking helps deliver consistent results for small portions and larger meals alike.

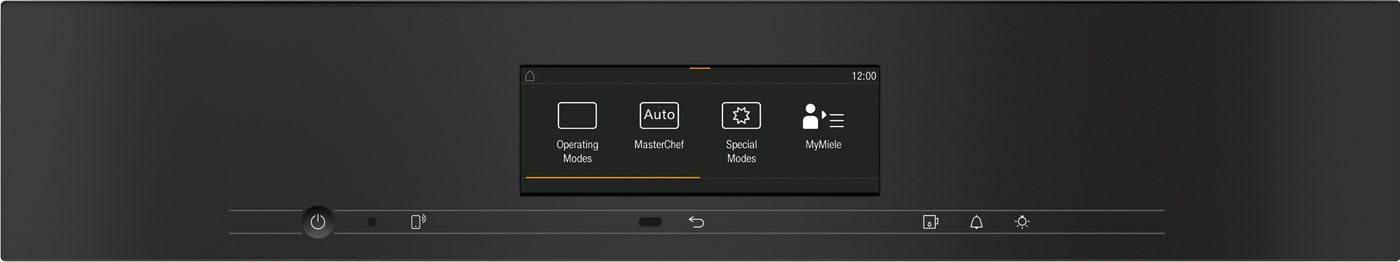

Enjoy intuitive operation with Miele's premium M Touch touchscreen display and MotionReact proximity sensor. The elegant motorized lift-up control panel with SoftClose enhances the appliance's refined PureLine design, while automatic programs, personalized favorites, and programmable cooking times simplify everyday meal preparation.
Expand your cooking possibilities with operating modes including Steam Cooking, Convection Bake, Combi-Steam, AirFry, Sous-Vide, Broiling, Reheating, and Defrosting. The included wired food probe monitors internal food temperatures for precise roasting, while Miele's Crisp Function reduces moisture when a golden, crispy finish is desired.
Integrated Miele@home Wi-Fi connectivity supports compatible connected appliance features, recipe guidance, notifications, and Miele Mix & Match functionality. Premium BrilliantLight interior lighting provides excellent visibility across all four cooking levels, while SoftOpen and SoftClose door operation offers smooth, comfortable access.
Cleaning and maintenance are simplified with Miele's durable PerfectClean stainless steel oven compartment, external steam generation, removable side racks, a CleanGlass door, and dedicated maintenance programs for soaking, rinsing, cavity drying, and descaling. The premium Clean Touch Steel exterior helps resist visible fingerprints for a consistently polished appearance.
Combining the versatility of three cooking appliances, an expansive XXL cooking cavity, advanced DualSteam technology, and the convenience of DirectWater Plus, the Miele DGC 7865 AM Combi-Steam Oven brings professional-style cooking flexibility to premium kitchens.
Installation Requirement: The DirectWater Plus system requires permanent fresh-water and wastewater drain connections, along with a 208-240V electrical supply. Confirm all plumbing, cabinetry, ventilation, and electrical requirements before installation.
- 24" Combi-Steam Oven XXL: Premium built-in appliance combining convection cooking, steam cooking, and combination steam cooking in one versatile design.
- 2.4 Cu. Ft. XXL Capacity: Spacious 68-liter stainless steel oven compartment with four cooking levels for preparing multiple dishes.
- DirectWater Plus: Permanent fresh-water and wastewater drain connections eliminate the need to manually fill or empty water containers.
- DualSteam Technology: Advanced external steam generation distributes steam quickly and evenly throughout the oven compartment.
- Combi-Steam Cooking: Combines oven heat with individually adjustable humidity for crisp exteriors and tender, juicy interiors.
- M Touch Controls: Premium touchscreen provides convenient access to operating modes, temperatures, automatic programs, and personalized settings.
- MotionReact Proximity Sensor: Intelligent proximity sensing enhances convenience during everyday operation.
- Motorized Lift-Up Control Panel: Smooth SoftClose operation complements the oven's elegant PureLine styling.
- Four-Level Steam Cooking: Prepare several dishes simultaneously with quantity-independent steam cooking and minimal flavor transfer.
- Automatic Menu Cooking: Coordinates cooking times, temperatures, and preparation sequences for multiple foods.
- AirFry Function: Uses circulating hot air to prepare crispy foods with less added oil.
- Sous-Vide Cooking: Supports precise low-temperature cooking of vacuum-sealed ingredients.
- Crisp Function: Reduces moisture inside the cooking compartment to help create golden, crispy finishes.
- Wired Food Probe: Monitors internal temperatures to help achieve precise roasting results.
- Automatic Cooking Programs: Convenient preset programs simplify a wide range of recipes.
- Rapid PreHeat: Helps bring the oven to the selected temperature quickly.
- BrilliantLight Interior Lighting: Provides excellent visibility throughout the spacious oven compartment.
- Miele@home Wi-Fi Connectivity: Supports compatible connected appliance features, recipes, notifications, and remote software updates.
- Miele Mix & Match: Connected cooking functionality offers additional flexibility when preparing meals.
- PerfectClean Stainless Steel Interior: Durable cooking compartment features Miele's easy-care linen-weave finish.
- External Steam Generation: Generates steam outside the cooking cavity for efficient distribution and easier maintenance.
- Automatic Maintenance Programs: Includes soaking, rinsing, cavity drying, and descaling functions.
- SoftOpen and SoftClose Door: Smooth, controlled door operation enhances everyday convenience.
- Clean Touch Steel Finish: Fingerprint-resistant stainless steel helps maintain an elegant appearance.
- Cool-Touch Front: Integrated cooling helps maintain safer exterior temperatures during operation.
- Integrated Safety Features: Includes safety shut-off, safety cut-out, system lock, and sensor lock.
- Diamond Collection: Premium Miele engineering and advanced culinary technology in a sophisticated PureLine design.
| Brand | Miele |
| Model | DGC 7865 AM |
| Material Number | 11877020 |
| Product Type | Built-In Combi-Steam Oven XXL |
| Product Series | Diamond |
| Design Line | PureLine |
| Finish | Stainless Steel / Clean Touch Steel |
| Nominal Width | 24" |
| Appliance Dimensions (W x H x D) | 23 3/8" x 23 1/2" x 22 3/8" (595 x 596 x 567 mm) |
| Cabinet Cutout Width | 22" - 22 3/8" (560-568 mm) |
| Cabinet Cutout Height | 23 1/4" - 23 3/8" (590-595 mm) |
| Minimum Cabinet Depth | 21 7/8" (555 mm) |
| Installation Type | Built-In |
| Oven Capacity | 2.4 cu. ft. (68 Liters) |
| Number of Rack Levels | 4 |
| Oven Temperature Range | 85°F - 450°F (30°C - 230°C) |
| Primary Cooking Functions | Steam Cooking, Convection Cooking, Combi-Steam Cooking |
| Additional Cooking Modes | AirFry, Sous-Vide, Surround, Intensive, Bake, Browning, Broil, Maxi Broil, Convection Broil |
| Combination Cooking Modes | Combi-Steam with Convection Bake, Surround, or Maxi Broil |
| Special Functions | Defrost, Reheat, Humidity Plus, Roast with Moisture, Warm-Up Cookware, Keep Warm |
| Steam Technology | DualSteam |
| Steam Generation | External Steam Generator |
| Humidity Control | Individually Adjustable in Combination Cooking |
| Steam Cooking Levels | Up to 4 Simultaneously |
| Automatic Menu Cooking | Yes |
| Quantity-Independent Steam Cooking | Yes |
| Automatic Cooking Programs | Yes |
| Food Probe | Wired / Included |
| Crisp Function | Yes |
| Rapid PreHeat | Yes |
| Water Supply System | DirectWater Plus |
| Fresh-Water Connection | Permanent Water Connection Required |
| Wastewater Connection | Permanent Drain Connection Required |
| Manual Water Refilling | Not Required During Normal Operation |
| Water Inlet Hose Length | Approximately 9 ft. 10" (3.0 m) |
| Water Drain Hose Length | Approximately 9 ft. 10" (3.0 m) |
| Drain Filter | Yes |
| Controls | M Touch Touchscreen |
| Proximity Sensor | MotionReact |
| Control Panel | Motorized Lift-Up with SoftClose |
| Door Hinge | Bottom |
| Door Operation | SoftOpen / SoftClose |
| Timer Functions | Minute Minder, Programmable Start/End Times, Cooking Duration |
| Sabbath Program | Yes |
| Smart Connectivity | Miele@home / Wi-Fi |
| Connected Features | Mix & Match, Recipes, Push Notifications, RemoteUpdate |
| Interior Material | Stainless Steel with PerfectClean Linen-Weave Finish |
| Interior Lighting | BrilliantLight |
| Cleaning Programs | Soak, Rinse, Cavity Drying, Descaling |
| Cleaning Features | Foldable Broil Element, Removable Side Racks, CleanGlass Door |
| Safety Features | Cool-Touch Front, Safety Shut-Off, Safety Cut-Out, System Lock, Sensor Lock |
| Voltage | 208-240V |
| Frequency | 60 Hz |
| Fuse Rating | 20A |
| Connected Load | 2.80-3.70 kW (Voltage Dependent) |
| Electrical Connection | Power Cord with Plug |
| Plug Type | NEMA 6-20 |
| Net Weight | Approximately 104 lbs. (47.1 kg) |
| Included Universal Tray | 1 x HUBB 71 with PerfectClean |
| Included Wire Rack | 1 x HBBR 71 with PerfectClean |
| Included Telescopic Runners | 1 Pair HFC 71 PerfectClean FlexiClip |
| Included Steam Cooking Containers | 2 Perforated Stainless Steel / 1 Solid Stainless Steel |
| Included Food Probe | 1 Wired Food Probe |
| Included Side Racks | 1 Pair Removable PerfectClean Side Racks |
| Included Descaling Tablets | 2 |
| EAN / Barcode | 4002516487951 |
Warranty: 2 Years standard. Upgrade to a full 5-Year Warranty for added protection.
