- Description
- Key Features
- Specs
- Warranty
Elevate everyday cooking with the Miele DGC 7870 30" Compact Combi-Steam Oven XL with DualSteam. Part of Miele's premium Diamond collection, this sophisticated built-in oven combines the versatility of a convection oven, steam oven, and combination steam oven in one beautifully designed appliance. Featuring a spacious 1.7 cu. ft. (48-liter) cooking compartment, advanced steam technology, and intelligent controls, the DGC 7870 delivers exceptional flexibility for modern kitchens.
Miele's innovative DualSteam technology generates and distributes steam quickly and evenly throughout the oven compartment, helping preserve the natural flavor, texture, and quality of your favorite ingredients. With Combi-Steam cooking, traditional oven heat works together with individually adjustable humidity levels to produce beautifully browned exteriors and tender, juicy interiors when roasting meats, baking artisan bread, and preparing gourmet dishes.
The versatile XL stainless steel oven compartment features three cooking levels, allowing you to prepare multiple dishes simultaneously. Miele's intelligent Automatic Menu Cooking coordinates the cooking sequence of different ingredients, while quantity-independent steam cooking helps deliver consistent results whether preparing individual portions or complete family meals.
Designed for installation flexibility, the DGC 7870 features a removable 1.4-liter fresh-water container and separate condensate container, both conveniently positioned behind the motorized lift-up control panel. Unlike permanently plumbed steam ovens, this model does not require a dedicated fresh-water supply or wastewater drain connection.
Enjoy effortless operation with Miele's premium M Touch touchscreen display and MotionReact proximity sensor. The intuitive interface provides convenient access to cooking modes, temperatures, automatic programs, and personalized favorites, while the motorized lift-up control panel with SoftClose enhances the oven's streamlined appearance.
Explore a wide range of culinary techniques with operating modes including Steam Cooking, Convection Bake, Combi-Steam, AirFry, Sous-Vide, Broiling, Reheating, and Defrosting. The included wired food probe monitors internal food temperatures for precise roasting, while Miele's Crisp Function helps reduce moisture when a golden, crispy finish is desired.
Integrated Miele@home Wi-Fi connectivity supports compatible connected appliance functions, recipes, notifications, and Miele Mix & Match. Premium BrilliantLight interior lighting provides excellent visibility throughout the oven compartment, while SoftOpen and SoftClose door operation delivers a smooth, refined user experience.
Cleaning and maintenance are simplified with Miele's durable PerfectClean stainless steel oven interior, external steam generation, removable side racks, CleanGlass door, and dedicated soaking, rinsing, cavity drying, and descaling programs.

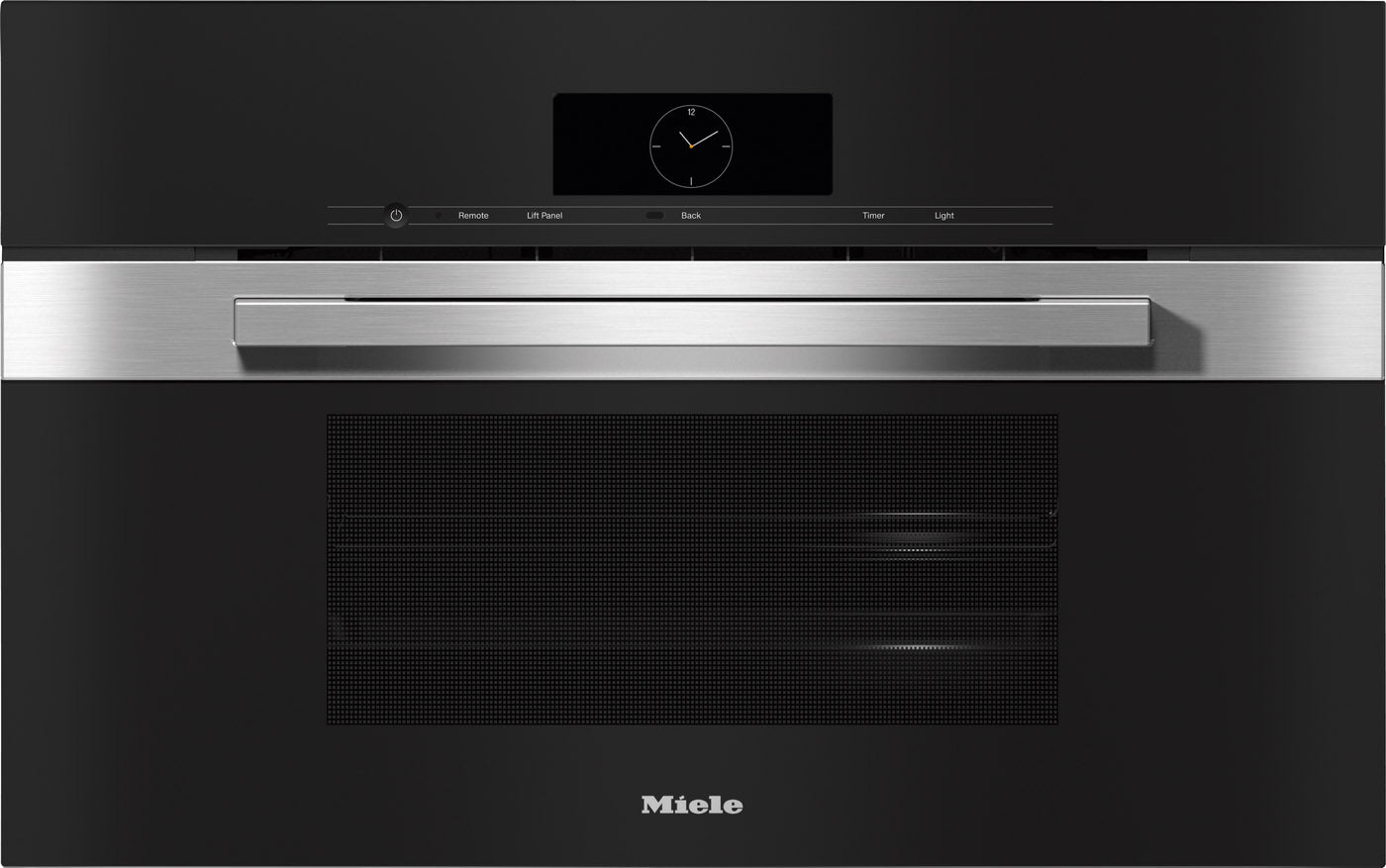

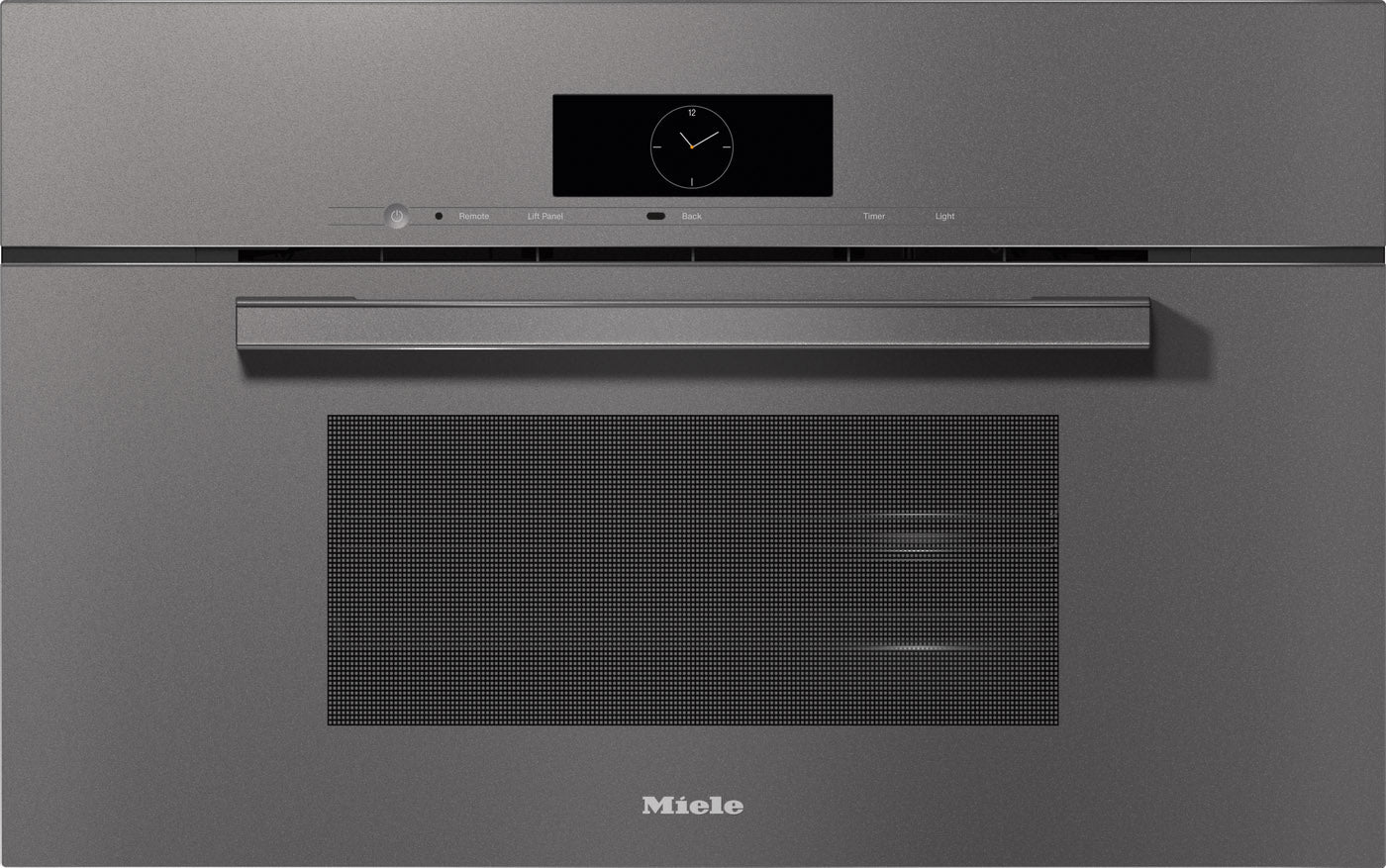

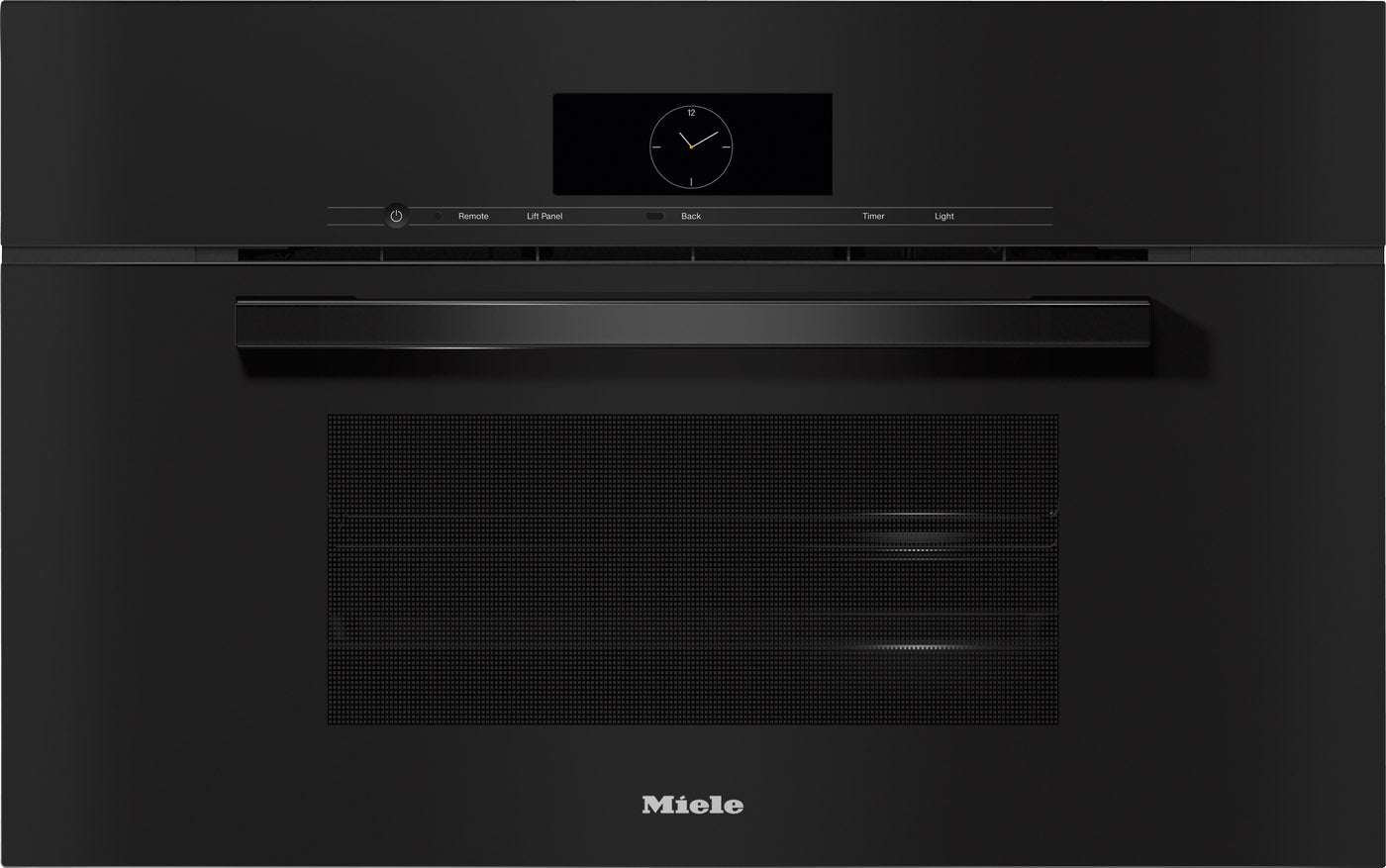

Available in Stainless Steel / Clean Touch Steel, Obsidian Black, and Graphite Grey, the DGC 7870 combines advanced steam cooking, sophisticated controls, flexible installation, and timeless Miele design to complement a wide range of premium kitchens.
Water System: Removable fresh-water and condensate containers. No permanent plumbing connection required.
- 30" Compact Combi-Steam Oven XL: Combines convection cooking, steam cooking, and combination steam cooking in one premium built-in appliance.
- Three Available Finishes: Choose Stainless Steel / Clean Touch Steel, Obsidian Black, or Graphite Grey.
- 1.7 Cu. Ft. XL Capacity: Spacious 48-liter stainless steel oven compartment with three cooking levels.
- DualSteam Technology: External steam generation distributes steam quickly and evenly for consistent cooking results.
- Combi-Steam Cooking: Combines traditional oven heat with individually adjustable humidity for crispy exteriors and tender, juicy interiors.
- Removable Water Containers: Features a 1.4-liter fresh-water container and a separate condensate container for convenient operation without permanent plumbing.

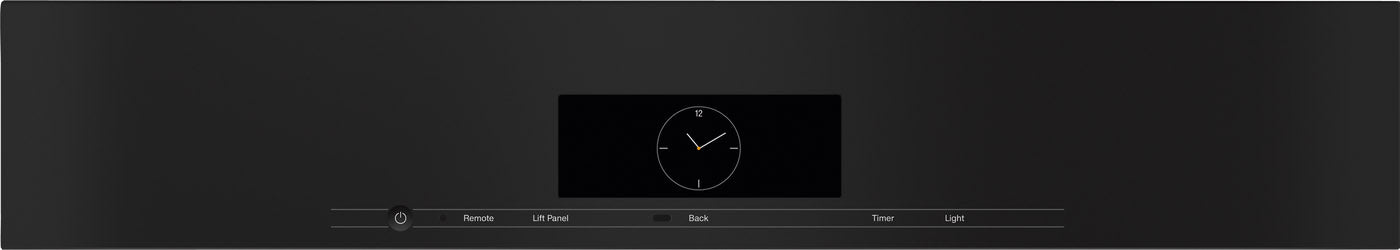

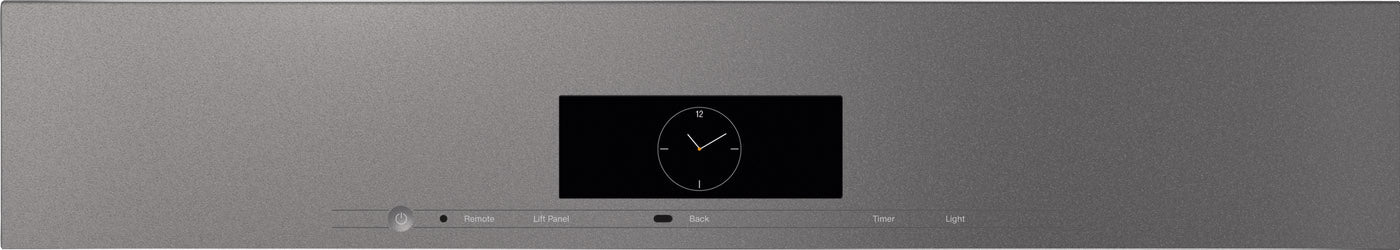

- M Touch Display: Premium touchscreen provides intuitive access to cooking functions, temperatures, automatic programs, and personalized settings.
- MotionReact Proximity Sensor: Intelligent sensor responds when approaching the oven for convenient operation.
- Motorized Lift-Up Control Panel: SoftClose panel conceals the water containers and provides an elegant, streamlined appearance.
- Three-Level Steam Cooking: Prepare multiple dishes simultaneously with quantity-independent steam cooking and minimal flavor transfer.
- Automatic Menu Cooking: Coordinates cooking times and preparation sequences for multiple ingredients.
- AirFry Function: Uses circulating hot air to prepare deliciously crispy foods.
- Sous-Vide Cooking: Supports precise low-temperature preparation of vacuum-sealed ingredients.
- Crisp Function: Reduces moisture in the oven compartment to create golden, crispy results.
- Wired Food Probe: Monitors internal food temperature for improved precision when roasting.
- Automatic Cooking Programs: Convenient presets simplify a wide variety of cooking techniques and recipes.
- Rapid PreHeat: Helps bring the oven to the desired temperature quickly.
- BrilliantLight Interior Lighting: Premium lighting provides excellent visibility throughout the oven compartment.
- Miele@home Wi-Fi Connectivity: Supports compatible connected functions, recipes, push notifications, and RemoteUpdate.
- Miele Mix & Match: Connected cooking functionality provides additional convenience when preparing meals.
- PerfectClean Stainless Steel Interior: Durable oven compartment features Miele's easy-care linen-weave surface.
- External Steam Generation: Produces steam outside the cooking cavity for efficient distribution and convenient maintenance.
- Automatic Maintenance Programs: Includes soaking, rinsing, cavity drying, and descaling functions.
- SoftOpen and SoftClose Door: Smooth, controlled door movement provides comfortable everyday operation.
- Cool-Touch Front: Integrated appliance cooling helps maintain safer exterior temperatures during cooking.
- Integrated Safety Features: Includes safety shut-off, safety cut-out, system lock, and sensor lock.
- Diamond Collection: Premium Miele cooking technology combined with refined PureLine or VitroLine styling.
| Brand | Miele |
| Model | DGC 7870 |
| Product Type | Built-In Compact Combi-Steam Oven XL |
| Series | Diamond |
| Design Line | PureLine (Stainless Steel) / VitroLine (Glass Finishes) |
| Available Finishes | Stainless Steel / Clean Touch Steel, Obsidian Black, Graphite Grey |
| Material Number - Stainless Steel | 11876080 |
| Material Number - Obsidian Black | 11876190 |
| Material Number - Graphite Grey | 11876180 |
| Nominal Width | 30" |
| Appliance Dimensions (W x H x D) | 29 3/4" x 18 7/8" x 22 1/2" (757 x 479 x 573 mm) |
| Cabinet Cutout Width | 28 1/2" (724 mm) |
| Cabinet Cutout Height | 18 1/2" - 18 5/8" (470-472 mm) |
| Minimum Cabinet Depth | 24" (610 mm) |
| Installation Type | Built-In |
| Oven Capacity | 1.7 cu. ft. (48 L) |
| Number of Rack Levels | 3 |
| Oven Temperature Range | 85°F - 450°F (30°C - 230°C) |
| Primary Cooking Functions | Steam Cooking, Convection Cooking, Combi-Steam Cooking |
| Additional Cooking Modes | AirFry, Sous-Vide, Surround, Intensive, Bake, Browning, Broil, Maxi Broil, Convection Broil |
| Combination Cooking Modes | Combi-Steam with Convection Bake, Surround, or Maxi Broil |
| Special Functions | Defrost, Reheat, Humidity Plus, Roast with Moisture, Warm-Up Cookware, Keep Warm |
| Steam Technology | DualSteam |
| Steam Generation | External Steam Generator |
| Humidity Control | Individually Adjustable in Combination Cooking |
| Steam Cooking Levels | Up to 3 Simultaneously |
| Automatic Menu Cooking | Yes |
| Quantity-Independent Steam Cooking | Yes |
| Automatic Programs | Yes, with Adjustable Results |
| Wired Food Probe | Included |
| Crisp Function | Yes |
| Rapid PreHeat | Yes |
| Water Supply System | Removable Fresh-Water Container |
| Fresh-Water Container Capacity | 1.4 Liters |
| Condensate Collection | Separate Removable Condensate Container |
| Permanent Water Connection | No |
| Permanent Wastewater Drain | No |
| Drain Filter | Yes |
| Controls | M Touch Touchscreen |
| Proximity Sensor | MotionReact |
| Control Panel | Motorized Lift-Up with SoftClose |
| Door Hinge | Bottom |
| Door Operation | SoftOpen / SoftClose |
| Timer Functions | Minute Minder, Programmable Start/End Times, Cooking Duration |
| Sabbath Program | Yes |
| Smart Connectivity | Miele@home / Wi-Fi |
| Connected Features | Mix & Match, Recipes, Push Notifications, RemoteUpdate |
| Interior Material | Stainless Steel with PerfectClean Linen-Weave Finish |
| Interior Lighting | BrilliantLight |
| Cleaning Programs | Soak, Rinse, Cavity Drying, Descaling |
| Cleaning Features | Foldable Broil Element, Removable Side Racks, CleanGlass Door |
| Safety Features | Cool-Touch Front, Safety Shut-Off, Safety Cut-Out, System Lock, Sensor Lock |
| Voltage | 208-240V |
| Frequency | 60 Hz |
| Fuse Rating | 20A |
| Total Connected Load | 2.80-3.70 kW (Voltage Dependent) |
| Electrical Connection | Power Cord with Plug |
| Plug Type | NEMA 6-20 |
| Net Weight | Approximately 96 lbs. (43.5 kg) |
| Included Universal Tray | 1 x HUBB 71 with PerfectClean |
| Included Wire Rack | 1 x HBBR 71 with PerfectClean |
| Included Telescopic Runners | 1 Pair HFC 71 PerfectClean FlexiClip |
| Included Steam Cooking Containers | 2 Perforated Stainless Steel / 1 Solid Stainless Steel |
| Included Food Probe | 1 Wired Food Probe |
| Included Side Racks | 1 Pair Removable PerfectClean Side Racks |
| Included Descaling Tablets | 2 |
| EAN - Stainless Steel | 4002516487531 |
| EAN - Obsidian Black | 4002516487722 |
| EAN - Graphite Grey | 4002516487715 |
Technical Specifications by Finish:
📄 View Full Technical Specifications - Stainless Steel (PDF)
Warranty: 2 Years standard. Upgrade to a full 5-Year Warranty for added protection.
