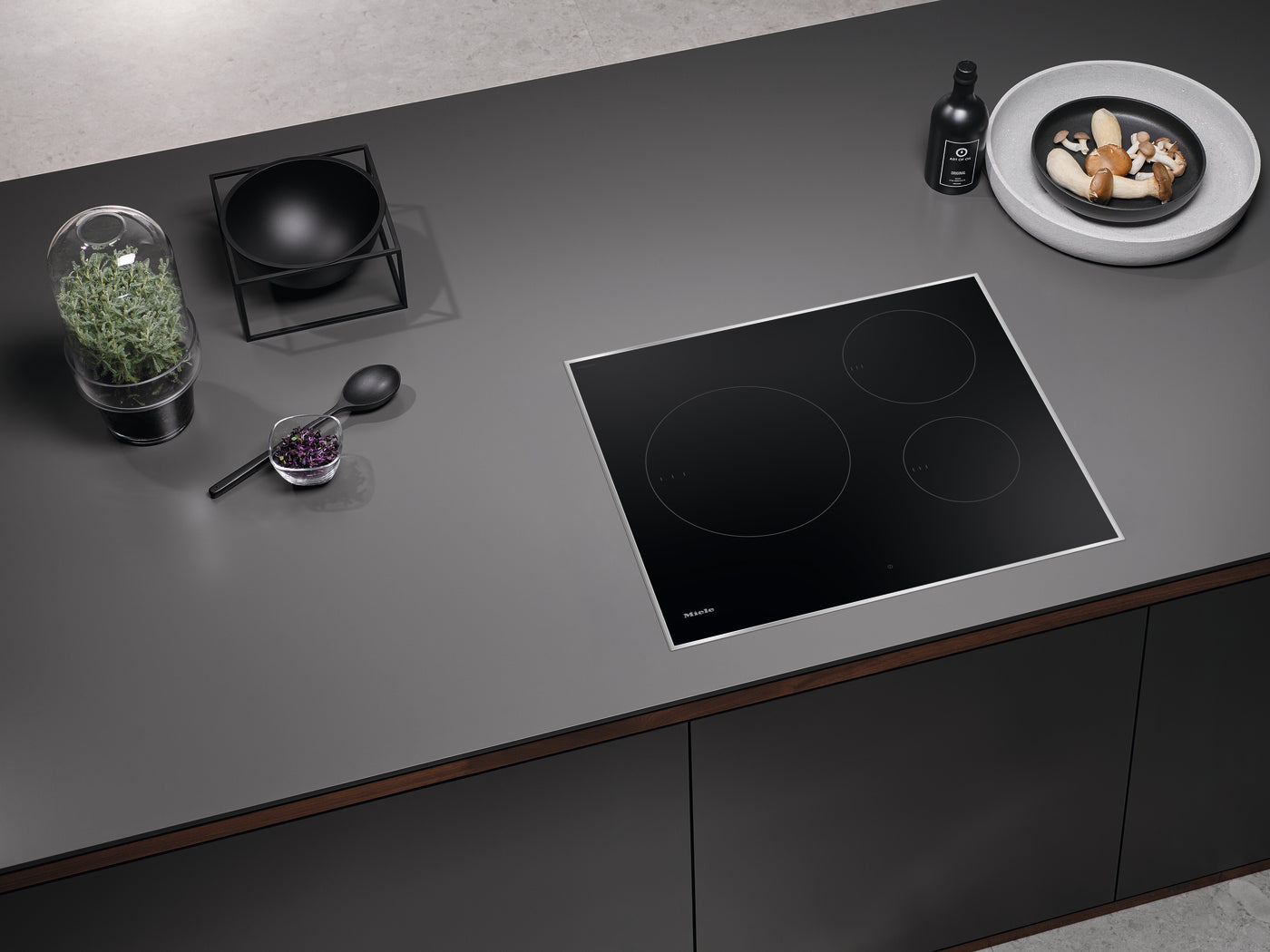

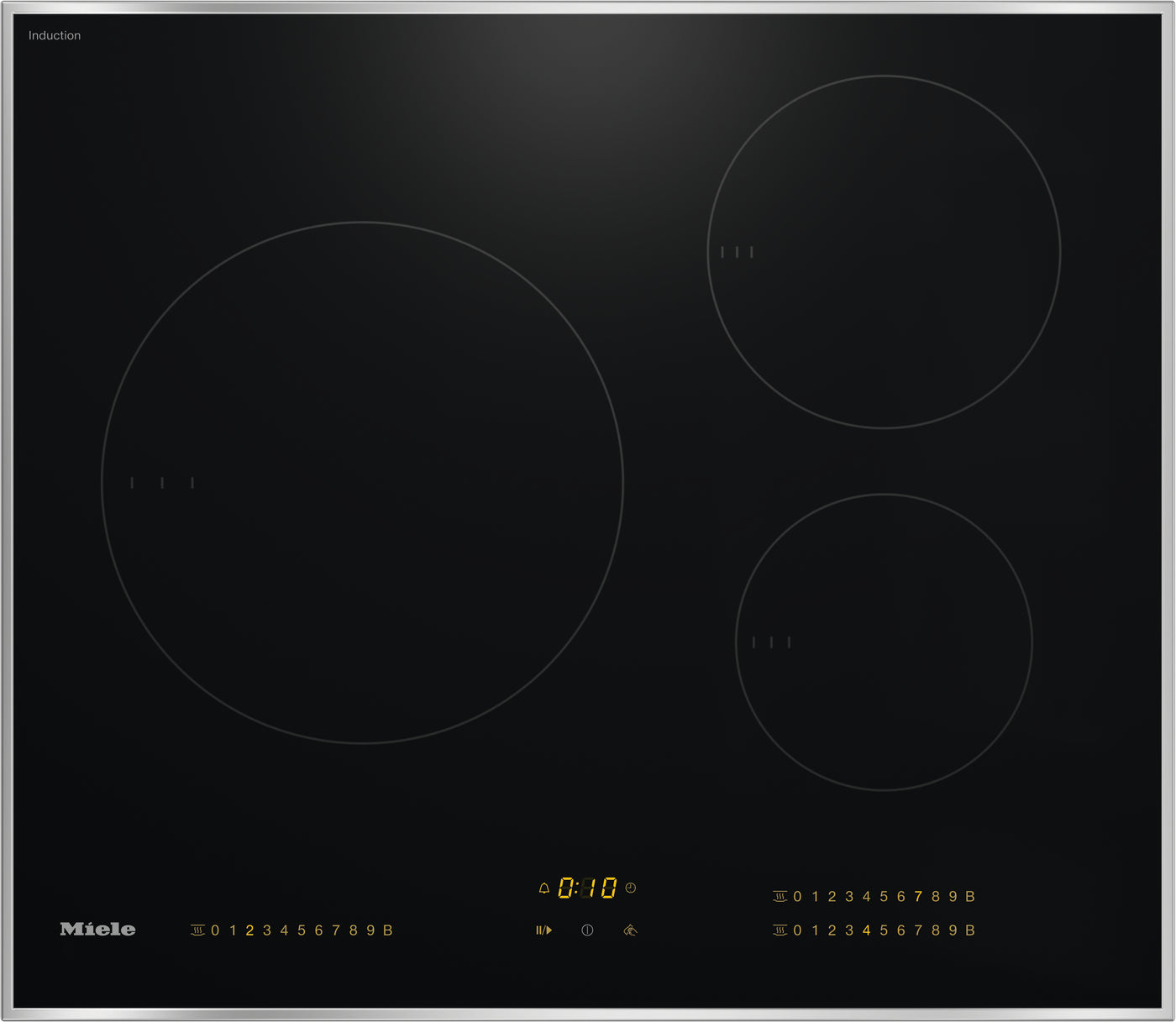

Experience the precision and convenience of induction cooking with the Miele KM 7720 FR 24" Induction Cooktop with Stainless Steel Frame. Featuring a sleek black ceramic glass cooking surface surrounded by a durable stainless steel frame, this compact induction cooktop combines powerful performance, intelligent technology, and timeless design in a space-saving format.
Designed with three individual induction cooking zones, the KM 7720 FR accommodates a variety of cookware sizes for everyday cooking. Its extra-large left cooking zone supports pans up to approximately 11 inches in diameter, while two additional zones provide versatile heating options for smaller pots and pans. With Miele's advanced TwinBooster technology, the largest cooking zone delivers up to 3,700 watts for rapid heating and precise cooking performance.
The intuitive SmartSelect touch controls feature a clear yellow display and convenient numerical power selection, making it easy to adjust cooking temperatures and control individual cooking functions. Miele's permanent pan recognition automatically detects compatible cookware positioned on the cooktop when the appliance is switched on.
For seamless kitchen integration, Con@ctivity 3.0 allows the cooktop to communicate with compatible Miele ventilation hoods, automatically adjusting ventilation operation according to cooking activity. Integrated Miele@home connectivity supports compatible smart-home features, notifications, and connected appliance functionality.
Additional conveniences include AutoBoost for rapid initial heating, Stop & Go for temporarily reducing cooking power, a Recall function for restoring previous settings, and a keep-warm function for maintaining prepared dishes at serving temperature. A minute minder and individual cooking-zone controls make everyday meal preparation easier.
Designed with safety in mind, the KM 7720 FR includes automatic safety shut-off, control lock, system lock, overheating protection, and residual heat indicators. The smooth black ceramic glass surface is easy to clean, while Wipe Protection helps prevent unintended control adjustments during cleaning.
The cooktop's all-around stainless steel frame provides an elegant finishing detail and is specifically designed for surface-mounted installation. Its compact 24-inch-class design makes it an excellent choice for kitchens where countertop space is limited without compromising on premium induction performance.
Combining three versatile induction zones, intelligent cooking functions, Miele connectivity, and refined stainless steel styling, the KM 7720 FR brings dependable precision and convenience to the modern kitchen.
- 24" Compact Induction Cooktop: Premium black ceramic glass cooking surface with an all-around stainless steel frame.
- Three Individual Induction Zones: Flexible cooking configuration accommodates three compatible pots or pans.
- Extra-Large 11" Cooking Zone: Spacious left cooking zone supports larger cookware with a diameter range of 180-280 mm.
- Up to 3,700W TwinBooster Power: Concentrates induction power for rapid heating on the largest cooking zone.

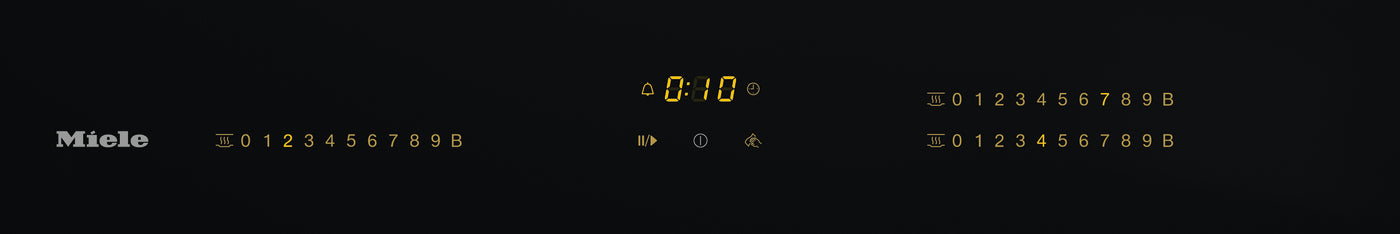

- SmartSelect Touch Controls: Intuitive numerical controls with a yellow display provide quick selection of power levels and cooking functions.
- Con@ctivity 3.0: Automatically coordinates ventilation operation with compatible Miele ventilation hoods.
- Miele@home Connectivity: Supports compatible smart-home functionality, notifications, and connected appliance features.
- Permanent Pan Recognition: Automatically recognizes compatible cookware already positioned on the cooktop when switched on.
- Pan and Pan-Size Recognition: Detects suitable cookware to support efficient induction heating.
- AutoBoost: Provides increased initial heating power before returning to the selected cooking setting.
- Stop & Go Function: Temporarily reduces active cooking zones to a lower power level and restores their settings when resumed.
- Recall Function: Helps restore previous cooking settings after an accidental shut-off.
- Keep-Warm Function: Maintains prepared food at a convenient serving temperature.
- Minute Minder: Convenient timer function helps manage cooking times.
- Automatic Cooking Zone Shut-Off: Allows cooking zones to switch off automatically after a selected cooking time.
- Wipe Protection: Temporarily prevents unintended control adjustments while cleaning the control area.
- Easy-Clean Ceramic Glass: Smooth black glass surface simplifies routine maintenance.
- Comprehensive Safety Features: Includes safety shut-off, lock function, system lock, overheating protection, and residual heat indicators.
- Integrated Cooling Fan: Helps regulate internal operating temperatures.
- Stainless Steel Frame: Durable all-around frame provides a refined finish for surface-mounted installations.
- Independent Operation: Integrated controls allow the cooktop to operate independently of a separate oven.
| Brand | Miele |
| Model | KM 7720 FR |
| Material Number | 12074190 |
| Product Type | Induction Cooktop |
| Product Series | Silver |
| Fuel Type | Electric Induction |
| Cooktop Finish | Black Ceramic Glass |
| Frame | All-Around Stainless Steel |
| Nominal Width | 24" |
| Overall Dimensions (W x H x D) | 24 3/4" x 3 1/8" x 21 1/2" (626 x 78 x 544 mm) |
| Installation Type | Surface-Mounted (Proud-Mount) |
| Countertop Cutout (W x D) | 22 3/8" x 20 1/2" (567 x 518 mm) |
| Casing Height Including Connection Box | 2 7/8" (71 mm) |
| Number of Cooking Zones | 3 |
| Maximum Number of Pans | 3 |
| PowerFlex Cooking Areas | None |
| Left Cooking Zone Position | Left Center |
| Left Cooking Zone Diameter | 180-280 mm |
| Left Cooking Zone Output | 2,600W |
| Left Zone Booster / TwinBooster | 3,000W / 3,700W |
| Rear Right Cooking Zone Diameter | 140-200 mm |
| Rear Right Cooking Zone Output | 1,850W |
| Rear Right Booster / TwinBooster | 2,500W / 3,000W |
| Front Right Cooking Zone Diameter | 100-160 mm |
| Front Right Cooking Zone Output | 1,400W |
| Front Right Booster / TwinBooster | 1,700W / 2,200W |
| Controls | SmartSelect Touch Controls |
| Display Color | Yellow |
| Boost Technology | Booster / TwinBooster |
| Automatic Ventilation | Con@ctivity 3.0 |
| Smart Connectivity | Miele@home |
| Cookware Recognition | Pan and Pan-Size Recognition / Permanent Pan Recognition |
| Cooking Functions | AutoBoost, Stop & Go, Recall, Keep Warm |
| Timer Functions | Minute Minder / Automatic Cooking Zone Shut-Off |
| Cleaning Features | Wipe Protection / Easy-Clean Ceramic Glass |
| Safety Features | Safety Shut-Off, Lock Function, System Lock, Overheating Protection, Residual Heat Indicators |
| Cooling System | Integrated Cooling Fan |
| Voltage | 208-240V |
| Frequency | 50-60 Hz |
| Electrical Connection | Hardwired |
| Electrical Circuit | 40A (Per Miele Electrical Planning Sheet) |
| Total Connected Load | 6.60-7.60 kW (Voltage Dependent) |
| Connection Cable | Included |
| Net Weight | 30 lbs. (14 kg) |
| EAN / Barcode | 4002516611547 |
Warranty: 2 Years standard. Upgrade to a full 5-Year Warranty for added protection.
